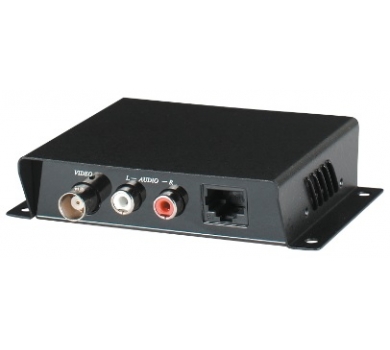

Composite Video & Audio CAT5 Extender
- Video & Audio CAT5 Extender, BNC connector for video, 2 x RCA for Audio (2pcs/set)
- Video and stereo audio transmission over one CAT5 cable
- Two way Audio and one Video over one CAT5 cable
Description
| TTP111AV | |
| Video input / output | BNC x 1 |
| Video Signal | 1V p-p, 75 Ohm |
| Audio input / output | RCA x 2 |
| Audio Signal | 2V p-p |
| LINK Connector | RJ45 x 1 |
| RJ45 PIN Define | PIN 1, 2 Audio R, PIN 3, 6 Audio L, PIN 7, 8 Video |
| Distance | 300M |
| Cable for RJ-45 | Twisted Pair CAT 5 (AWG24) |
| Dimension / Weight | 110 x 78.2 x 26 mm / 180g |
| Certification | CE / FCC / RoHS |
