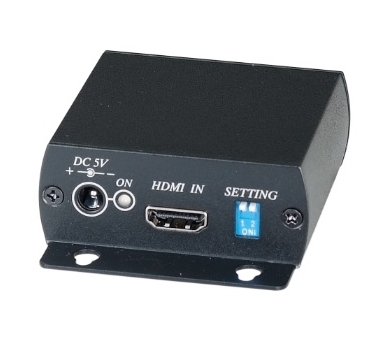

HDMI CAT5 Extender - Single CAT5e cable Transmitter unit
- Extends HDMI signal over one CAT5e/6 cable
- HDMI 1.3 compliant, 3D capable
- HDCP compatible
Description
| HE01ST | ||
| Video Bandwidth | 2.25 Gbps (HDMI 1.3) | |
| Resolution | 480i/p, 720p, 1080i/p @ 24/50/60Hz | |
| Link Cable Distance | CAT5e 60M @1080i, CAT5e 40M @1080p | |
| Input TMDS Signal | 1.2 volts peak to peak | |
| Input DDC Signal | 5 Volts peak to peak | |
| HDMI Connector | HDMI 19 pin type female connector | |
| Link Connector | RJ-45 Shielded with 2 indication LEDS | |
| Power Supply | DC 5V / 2Amp | |
| Power Consumption | 1200mA (Max) | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension / Weight | 67 x 91 x 27 mm / 140g | |
| Certification | CE / FCC / RoHS | |
