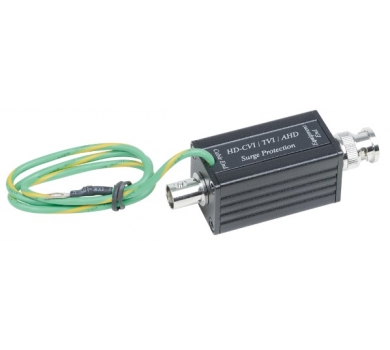

HD-CVI / TVI / AHD Surge Protector
- BNC male to BNC female
- Provide protection for analog HD-CVI, TVI, AHD camera, DVR devices
- Comply with IEC 61000-4-5
Description
| SP009 | |
| Input and output interface | BNC (Male) x 1, BNC (Female) x 1 |
| Surge Protection Attack Time | < 1nS |
| Starting voltage surge | 6V |
| Maximum Clamping Voltage | 25V |
| Reference Standard | IEC 61000-4-5 |
| Signal insertion loss | 0.8db @ 42 Mb/s |
| Maximum discharge current | 15 KA ( MAX ) |
| Environmental Specifications | operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% |
| Dimension / Weight | 79.3 x 25.4 x 25.4 mm (1U) / 75g |
| Certification | CE / FCC / RoHS |
