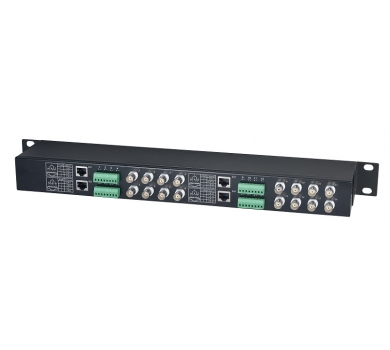

16 Port HD Video Transceiver in 1U Rack Mounting Panel
- Built in 16 port passive HD video transceiver in 1U 19" rack mounting panel
- Choice of 4 x RJ45 or 4 sets x 8 pin removable screw terminal for 16CH inputs / outputs
- To send HD-TVI / AHD / CVI / CVBS signal over UTP cable
Description
| TPP016HD | ||
| Video Input / Output | BNC x 16 (1V p-p, 75 Ohms) | |
| RJ45 Output | 8 Pin removable terminal x 4 (100 Ohm) / RJ45 x 4 | |
| Cable | CAT5e/CAT6 UTP | |
| Bandwidth | 50Hz ~ 60MHz (-3dB) | |
| Transmission Distance | 1080P: HD-TVI 250M, AHD 250M, HDCVI 300M 4MP / 5MP: HD-TVI 250M, AHD 200M, HDCVI 250M CVBS: 300M | |
| Power | X | |
| ESD protection | 30 KV(Air), 15 KV(Contact) ; IEC 61000-4-2 compliant | |
| EFT protection | 40A (5/50ns) ; IEC 61000-4-4 compliant | |
| Lighting protection | 2A (8/20μs) ; IEC 61000-4-5 compliant | |
| Surge Protection Attack Time | < 1 nS | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension / Weight | 483 x 103.5 x 44mm / 1380g | |
| Certification | CE / FCC / RoHS | |
