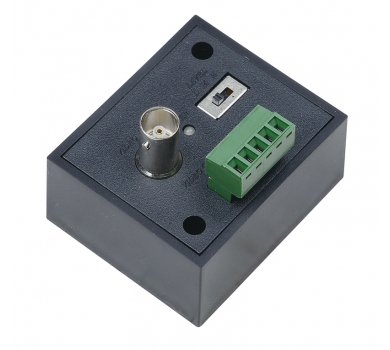

HD-TVI / HDCVI / AHD UTP Active Transmitter
- To send HD-TVI signal up to 300M over UTP cable
- To send AHD signal up to 400M over UTP cable
- To send HDCVI signal up to 500M over UTP cable
Description
| TTA111HDT | ||
| Video Format | HD-TVI, HD-CVI | |
| Video Input | BNC x 1 (1V p-p, 75 Ohms) | |
| Video Output | 5 Pin removable terminal x 1 (100 Ohm) | |
| Switch | Slide switch (3 level) x 1 | |
| Cable | CAT5e/CAT6 UTP | |
| Transmission Distance | Up to 1080P 300M | |
| Power Supply | DC12V 500mA | |
| Power Consumption | 70 mA (Max) | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension / Weight | 57.8 x 49.2 x 41.7mm / 70g | |
| Certification | CE / FCC / RoHS | |
