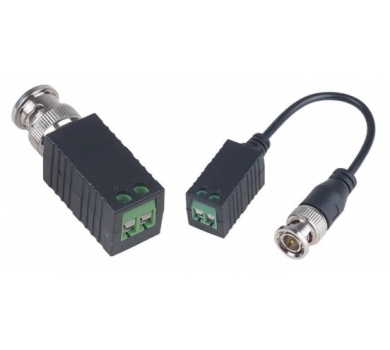

HD Video Transceiver (TTP111HD + TTP111HDL)
- TTP111HD + TTP111HDL
- To send HDCVI / AHD / CVBS signal up to 300M over UTP cable
- BNC male to screw terminal for easy connection
Description
| TTP111HD | TTP111HDL | |
| Video Input / Output Terminals | BNC MALE (75 Ohms, 1V p-p) | |
| Video Input / Output Terminals | TERMINAL BLOCK | |
| Bandwidth | 50Hz ~ 60MHz (-3dB) | |
| Transmission Distance | 1080P: HD-TVI 250M, AHD 250M, HDCVI 300M 4MP / 5MP / 4K: HD-TVI 200M, AHD 200M, HD-CVI 200M CVBS: 400M | |
| ESD protection | 30 KV(Air), 15 KV(Contact) ; IEC 61000-4-2 compliant | |
| EFT protection | 40A (5/50ns) ; IEC 61000-4-4 compliant | |
| Lighting protection | 2A (8/20μs) ; IEC 61000-4-5 compliant | |
| Surge Protection Attack Time | < 1 nS | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension (mm) | 14.5 x 49.5 x 15.5 | 15.5 x 16.8 x 143mm, include 100mm mini coax cable |
| Weight (g) | 18 | 25 |
| Certification | CE / FCC / RoHS | |
