HD-TVI / AHD / HDCVI / CVBS Video Balun with Pigtail
Back to list

HD-TVI / AHD / HDCVI / CVBS Video Balun with Pigtail

  • To send HD-CVI / CVBS signal up to 400M over UTP cable
  • To send HD-TVI / AHD signal up to 250M over UTP cable

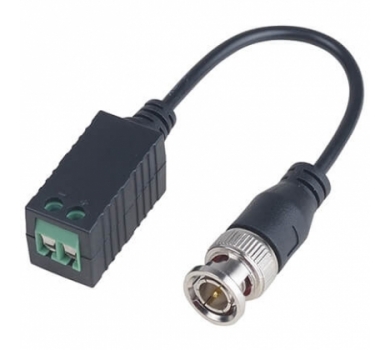

  • BNC male to screw terminal with 10cm mini coax cable for easy connection
Description
  TTP111HDL
Video Input / Output Terminals BNC MaLE (75 Ohms, 1V p-p)
Video Input  / Output Terminals TERMINAL BLOCK
Bandwidth 50Hz ~ 60MHz (-3dB)
Transmission Distance  1080P: HD-TVI 250M, AHD 250M, HDCVI 400M
 5MP:   HD-TVI  200M, AHD 200M
 4K:  HD-TVI: 150M, HD-CVI 250M
 CVBS: 400M
Power  X
ESD protection  30 KV(Air), 15 KV(Contact) ; IEC 61000-4-2 compliant
EFT protection  40A (5/50ns) ; IEC 61000-4-4 compliant
Lighting protection  2A (8/20μs) ; IEC 61000-4-5 compliant
Surge Protection Attack Time  < 1 nS
Temperature   Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95%
Dimension / Weight 15.5 x 16.8 x 143mm, include 100mm mini coax  cable  / 20g
Certification  CE / FCC / RoHS
