HD-TVI / AHD / HDCVI / CVBS Video Balun
- To send HD-CVI / CVBS signal up to 400M over UTP cable
- To send HD-TVI / AHD signal up to 250M over UTP cable

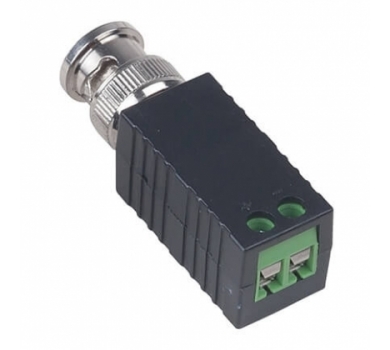

- BNC male to screw terminal for easy connection
Description
| TTP111HD | ||
| Video Input (BNC Connector) | 1 | |
| Video Input | 1V p-p, 75 Ohms | |
| Cable | UTP (unshielded Twisted Pair) CAT5e/CAT6 | |
| Bandwidth | 50Hz ~ 60MHz (-3dB) | |
| Transmission Distance | 1080P: HD-TVI 250M, AHD 250M, HDCVI 400M 5MP: HD-TVI 200M, AHD 200M 4K: HD-TVI: 150M, HD-CVI 250M CVBS: 400M | |
| RJ-45 Output | Terminal | |
| Power | X | |
| ESD protection | 30 KV(Air), 15 KV(Contact) ; IEC 61000-4-2 compliant | |
| EFT protection | 40A (5/50ns) ; IEC 61000-4-4 compliant | |
| Lighting protection | 2A (8/20μs) ; IEC 61000-4-5 compliant | |
| Surge Protection Attack Time | < 1 nS | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension / Weight | 15.5 x 47 x 16.8mm / 15g | |
| Certification | CE / FCC / RoHS | |
