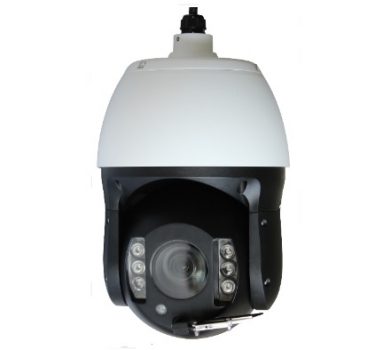

4MP 33X Starlight PTZ Network Camera, 200M IR Range (Smart AI)
Back to list

4MP 33X Starlight PTZ Network Camera, 200M IR Range (Smart AI)

  • 4MP 33X Starlight PTZ Camera, 200M IR Range
  • 5.5~180mm 33X Optical Zoom, 16X Digital Zoom
  • Auto tracking of all moving targets
  • Smart AI: Vehicle, Non-Motor Vehicle, Human Body Detection
Description



CB-33X-1540
Digital Video Processor  1/1.8"  4MP CMOS Sensor
RAM & ROM  1GB RAM / 8GB ROM
Frame Rate  2560*1440
Minimum Illumination Color: 0.0005Lux@F1.5(AGC ON), B/W: 0.0001Lux@F1.5(AGC ON)
Shutter Speed   Auto / 1/25s - 1 ~ 100,000s
Slow Shutter  Support
Aperture DC drive
D/N Switch  Auto, Dual IR-Cut Filter (Day / Night / Auto / Schedule)
IR Illuminator / Wavelength  Up to 200M / 850nm
Lens Type  5.5 ~ 180mm Motorized 33X Optical Zoom Lens
Optical Zoom  33X
Digital Zoom  16X
Focus Control  Auto / Semi-Auto / Manual
Iris Control  Auto Iris
Aperture Value F1.5 ~ F4.0
Field of View (H) 58.9° ~ 2.4° (Wide ~ Tele)
Field of View (V) 33.6° ~ 1.4° (Wide ~ Tele)
Field of View (D) 67.2° ~ 2.8° (Wide ~ Tele)
Minimum Working Distance  100mm ~ 1500mm
Zoom Speed  Approximately 3.5s
DRI  Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
  5.5mm 43 21 21 17
  180mm 1200 700 700 560
Video Compression H.265 Main Profile / H.264 High Profile / H.264 Main Profile / H.264 Baseline Profile / MJPEG
Video Bit Rate  32Kbps ~ 16Mpbs
Audio Compression  G.711a / G.711u / G.722.1 / G.726 / MP2L2 / AAC / PCM
Audio Bit Rate  64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)
Max. Resolution  2560*1440@25/30fps
Main Stream  50/60Hz: 25/30fps(2560*1440/1920*1080/1280*960/1280*720)
Sub Stream  50/60Hz: 25/30fps(704*576/640*480/352*288)
Third Stream  50/60Hz: 25/30fps(704*576)
Image Setting  Saturation, Brightness, Contrast, Sharpness adjustable by Client Soft. Or Browse
Exposure Mode  Auto Exposure / Aperture Priority / Shutter Priority / Manual Exposure
Focus Mode  Auto Focus / One Step / Manual Focus / Semi-Auto Focus
Area Exposure / Focus  Support
Gain Control  Auto / Manual
BLC / White balance  BLC: On/Off, White Balance: (Auto / Manual / Lock)
Defog  Support
Day/Night Switch  Auto, Manual, Timing, Alarm Trigger
Flip  Normal / Flip Vertical / Flip Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
HLC  Support
Image Stabilization (EIS) Support
DNR 3D DNR
WDR ≥ 140dB
SNR ≥ 60dB
Picture Overlay Switch  Support BMP 24-bit image overlay, customizable area
Region of Interest  Support 3 streams and 4 fixed areas
Privacy Mask  On/Off, (8 Areas, Rectangle)
Protocols
IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP,
UDP, DHCP, PPPoE
API Onvif (Profile S, Profile G), PSIA, CGI
Baud Rate  1200 / 2400 / 4800 / 9600bps (Default: 115200bps)
Streaming Method  Unicast / Multicast
Simultaneous  Live View Up to 20 Channels
User / Host  5 Users
Security
Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter, Control Timeout Settings
Video Management Software  IE, CMS, PC Client Software / App
WEB IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
Mobile Client  iOS, Android
P2P Support iOS, Android, PC
Horizontal Rotation Range  0-360° endless
Horizontal Rotation Speed Pan Speed: Configurable from 0.05° to 300°/s; Preset Speed: 300°/s
Tilt Rotation Range 15~93° (Auto Flip)
Tilt Rotation Speed  Tilt Speed: Configurable from 0.05° to 90°/s; Preset Speed: 200°/s
Preset Points  255
Patrol Scan  6 Patrols, up to 18 Presets per patrol
Pattern  4 Patterns, with total recording time not less than 10mins
A-B Scan  User Programmable
A-B Scan Speed  8 Levels Setting Available
3D Positioning  Support
PWR On Action  Memory / Pattern 1 / Tour 1 / 360° Scan / A-B Scan / Preset 1-18 / None
Park Time  5 ~ 720s available
Dwell Preset  10 ~ 120s available
Power-Off Memory  Support
Anti-Flash  50Hz / 60Hz
IR distance  Up to150M
IR intensity  Automatically adjusted, depending on the zoom ratio
Ethernet Interface  RJ45*1, 10M/100M set-adaptive
Storage  Support 256G Micro SD / SDHC / SDXC offline local storage, NAS (NFS, SMB / CIFS support)
Alarm  1CH Input, 1CH Output
Audio  1CH Input, 1CH Output
Snapshot  Remote Timing Snapshot, Mobile View Images Snapshot
Motion Detection  Intelligent Multiple Detection Zones (Max. 4 Zones)
Alarm Linkage  E-mail Alert and Upload Snapshot to FTP, Relay Out, Mobile Phone App
Basic Event  Motion Detection, Alarm Input and Output
Smart Event
Area Intrusion Detection, Audio Detection, Line Crossing Detection, Region Entrance/Exiting
Detection, Wandering Detection, Quick Motion Detection, Parking Detection, Personnel
Gathering Detection, Scene Change Detection
Smart AI Function (Optional) Support vehicle, non-motor vehicle, human body detection
Smart Tracking  Auto Tracking
Alarm Linkage  Upload to FTP, E-mail, Trigger Alarm Output, Trigger Recording
Operating Temp. Indoor: 0 ~ 40°, Outdoor: -40°~ 65℃
Humidity  ≤ 95% Non Condensing
Power  AC 24V
Power Consumption   50W
Dimension  230(W)*437(H)mm
Weight  6.5kg
Protection Level  IP66, TVS 4000V Lightning Protection, Surge Protection
Mounting Bracket  Wall Mount Bracket or Ceiling Mount Bracket
Certification  CE / FCC / RoHS
ISO ISO9001
