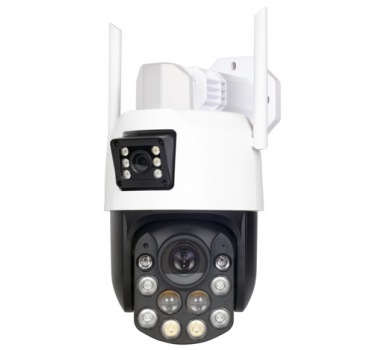

3MP 26X PTZ Camera + 3MP Fixes Lens Camera, 120M IR Range
- 3MP 26X PTZ Camera + 3Mp Fixes Lens Camera
- 5.0~130mm 26X Optical Zoom + 4.0mm Fixed Lens
- Auto Tracking/Humanoid Detection, Perimeter Intrusion Detection, Cross Line Detection
Description
| CB-26X-1233AI | |||||
| Digital Video Processor | 1/2.8" 3MP CMOS Sensor | 1/2.8" 3MP CMOS Sensor | |||
| Minimum Illumination | Color: 0.001Lux@F1.2(AGC ON), B/W: 0Lux@IR ON | ||||
| D/N | Auto, Dual IR-Cut Filter | ||||
| Shutter Speed | Auto / 1/5s - 1 ~ 20,000s adjustable | ||||
| WDR | True WDR ≥ 120dB | ||||
| SNR | ≥ 60dB | ||||
| Lens Type | 4.0mm | 5~130mm Motorized 26X Optical Zoom Lens | |||
| Optical Zoom | N / A | 26X | |||
| Iris | F1.0 | Auto; F1.5 (W) ~ F3.8 (T) | |||
| Field of View (H) | 94.9 | 56.9° ~ 2.9° (Wide ~ Tele) | |||
| Field of View (V) | 51.5 | 32.2° ~ 1.6° (Wide ~ Tele) | |||
| Field of View (D) | 116.7 | 68.4° ~ 3.4° (Wide ~ Tele) | |||
| DORI | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4mm (Panorama) | 62.1 | 24.8 | 12.4 | 6.2 | |
| 5mm | 123.8 | 49.5 | 24.8 | 12.4 | |
| 130mm | 2478 | 992 | 496 | 248 | |
| IR Range | Blue & Red Dual Light IR Led*6 up to 20M | Array IR Led*6 up to 120M | |||
| Warm Light Range | Warm Light*6 up to 20M | Warm Light*4 up to 60M | |||
| Wavelength | 850nm (IR) | 850nm (IR) | |||
| Light On/Off Control | Auto/Manual | Auto/Manual | |||
| Max. Resolution | 2304*1296@25/30fps | ||||
| Main Stream | 25/30fps: 2304*1296, 1920*1080, 960P: 1280*960, 720P: 1280*720 | ||||
| Sub Stream | Sub Stream@25/30fps: 800*448, 704*576, 640*360, 352*288 | ||||
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG | ||||
| Video Bit Rate | 128Kbps ~ 12Mpbs | ||||
| Audio Compression | G.711A | ||||
| Audio Bit Rate | Minimum 8 Kbps or Higher | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| DNR | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital defog | ||||
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm | ||||
| Auto Tracking | N / A | Support | |||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio Compression | G.711A | ||||
| Audio Bit Rate | 64 Kbps | ||||
| Two Way Audio | Support | ||||
| Audio and Video Sync. | Support | ||||
| Sampling Rate | 8KHz | ||||
| Edge Storage | Micro SD, upto 512 GB | ||||
| Network Storage | ANR | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
| Compatible Integration | ONVIF, API, SDK | ||||
| User / Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client Soft / App | Support | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Protocols | N/A | 360° | |||
| API | N/A | 0.1°/s ~ 80°/s | |||
| Baud Rate | N/A | Preset speed: 80°/s | |||
| Simultaneous | 18° ± 5° | - 15° ~ 90° | |||
| User /Host | N/A | 0.1°/s ~ 80°/s | |||
| Security | N/A | Preset speed: 80°/s | |||
| Video Management Software | IE / Web / PC Client Software / App | ||||
| Mobile App / P2P | iOS, Android , PC | ||||
| Web Browser | Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ | ||||
| Streaming Method | Unicast / Multicast | ||||
| Audio | 1CH Input, 1CH Output | ||||
| Alarm | N/A | ||||
| Serial Port | 1*RS485 | ||||
| Built-in Mic | Support | ||||
| Built-in Speaker | Support | ||||
| Wi-Fi | 2.4G | ||||
| Network | 1*RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | N/A | ||||
| Snapshot | Remote Timing Snapshot, Mobile View Images Snapshot | ||||
| Motion Detection | Intelligent Multiple Detection Zones (Max. 4 Zones) | ||||
| Humanoid Detection | Humanoid Detection Record, Snapshot, Alarm Output, Tracking | ||||
| Alarm Linkage | E-mail Alert and Upload Snapshot to FTP, Relay Out, Mobile Phone App | ||||
| Basic Event | Motion Detection, Alarm Input and Output | ||||
| Smart AI Function | Humanoid Detection, Perimeter Intrusion Detection, Cross Line Detection | ||||
| Smart Tracking | Auto Tracking | ||||
| Alarm Linkage | Upload to FTP, E-mail, Trigger Alarm Output, Trigger Recording | ||||
| Operating Temp. | Indoor: 0 ~ 40°, Outdoor: -40°~ 65℃ | ||||
| Humidity | ≤ 95% Non Condensing | ||||
| Power | DC12V ≤ 2A | ||||
| Power Consumption | ≤ 12W | ||||
| Dimension | 171(W)*254(H)mm 160(W)*160(D)*300(H)mm | ||||
| Weight | 0.9KG (N.W), 1.1KG (G.W) | ||||
| Related Validation | IP66 | ||||
| Surge Protection | 6KV | ||||
| Reset Button | Support | ||||
| Certification | CE / FCC / RoHS | ||||
| ISO | ISO9001 | ||||
