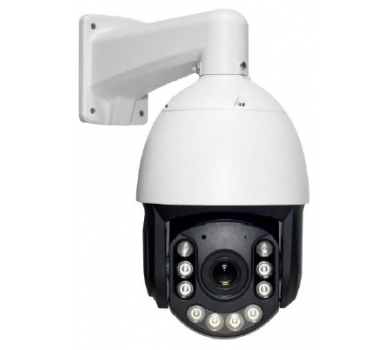

8MP 26X PTZ Camera, 100M IR Range
- 8MP 26X PTZ Camera, 100M IR Range
- 5.0~130mm 26X Optical Zoom
- Humanoid/Vehicle Detection
Description
| CB-26X-1080 | |||||
| Digital Video Processor | 1/2.8" 8MP CMOS Sensor | ||||
| RAM & ROM | 256MB*2 RAM / 128MB Flash | ||||
| Frame Rate | 3840*2160 | ||||
| Minimum Illumination | Color: 0.001Lux@F1.6(AGC ON), B/W: 0Lux@IR ON | ||||
| Shutter Speed | Auto / 1/25s ~ 1/100,000s | ||||
| Slow Shutter | Support | ||||
| Aperture | DC drive | ||||
| D/N | Auto, Dual IR-Cut Filter (Day / Night / Auto / Schedule) | ||||
| IR Illuminator / Wavelength | Up to 150M / 850nm | ||||
| Lens | 5 ~ 130mm Motorized 26X Optical Zoom Lens | ||||
| Optical Zoom | 26X | ||||
| Focus Control | Auto / Semi-Auto / Manual | ||||
| Iris Control | Auto Iris | ||||
| Aperture Value | Auto; F1.5(W)~F3.8(T) | ||||
| Field of View (H) | 56.9° ~ 2.9° (Wide ~ Tele) | ||||
| Field of View (V) | 32.2° ~ 1.6° (Wide ~ Tele) | ||||
| Field of View (D) | 68.4° ~ 3.4° (Wide ~ Tele) | ||||
| DORI | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 5mm | 123.8 | 49.5 | 24.8 | 12.4 | |
| 130mm | 2478 | 992 | 496 | 248 | |
| Max. Resolution | 3840*2160@25/30fps | ||||
| Main Stream | 50/60Hz: 25/30fps(3840*2160/2560*1440/1920*1080/1280*960/1280*720) | ||||
| Sub Stream | 50/60Hz: 25/30fps(1280*720/704*576) | ||||
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG | ||||
| Video Bit Rate | 128Kbps ~ 12Mpbs | ||||
| Audio Compression | G.711A | ||||
| Audio Bit Rate | Minimum 8 Kbps or Higher | ||||
| Area Exposure / Focus | Support | ||||
| Gain Control | Auto / Manual | ||||
| BLC / White Balance | BLC: On/Off, White Balance: (Auto / Manual / Lock) | ||||
| Defog | Support | ||||
| Day/Night Switch | Auto, Manual, Timing, Alarm Trigger | ||||
| Flip | Normal / Flip Vertical / Flip Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise | ||||
| HLC | Support | ||||
| Image Stabilization (EIS) | Support | ||||
| DNR | 2D + 3D DNR | ||||
| WDR | ≥ 120dB | ||||
| S/N Ratio | ≥ 56dB | ||||
| Privacy Mask | On/Off, (8 Areas, Rectangle) | ||||
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE | ||||
| Baud Rate | 1200 / 2400 / 4800 / 9600bps (Default:115200bps) | ||||
| Streaming Method | Unicast / Multicast | ||||
| Simultaneous | Up to 20 channels | ||||
| User / Host | 5 Users | ||||
| Security | Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter, Control Timeout Settings | ||||
| Video Management Software | IE / Web / PC Client Software / App | ||||
| WEB | IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above | ||||
| Mobile Client | iOS, Android | ||||
| P2P | Support iOS / Android / PC | ||||
| Horizontal Rotation Range | 0-360° | ||||
| Horizontal Rotation Speed | Pan Speed: Configurable from 0 to 80°/s | ||||
| Tilt Rotation Range | 0~93° | ||||
| Tilt Rotation Speed | Tilt Speed: Configurable from 0 to 40°/s | ||||
| Preset Points | 220 | ||||
| Patrol Scan | 4 Patrols, up to 16 Presets per patrol | ||||
| Pattern | 4 Patterns, with total recording time not less than 10mins | ||||
| A-B Scan | User Programmable | ||||
| A-B Scan Speed | 0~64 Levels Setting Available | ||||
| 3D Positioning | Support | ||||
| PWR On Action | Memory / Pattern 1 / Tour 1 / 360° Scan / A-B Scan / Preset 1-18 / None | ||||
| Park Time | 0~60mins available | ||||
| Dwell Preset | 2~60s available | ||||
| Time Scheduling Function | 8 tasks | ||||
| Power-Off Memory | Support | ||||
| Anti-Flash | 50Hz / 60Hz | ||||
| IR Distance | IR Led*4 + Warm Light*6 up to 100M | ||||
| IR Intensity | Automatically adjusted, depending on the zoom ratio | ||||
| Ethernet Interface | RJ45*1, 10M/100M Base-T | ||||
| Storage | Support 256G Micro SD / SDHC / SDXC (Optional) | ||||
| RS-485 | RS-485*1 | ||||
| Alarm | 1CH Input, 1CH Output (Optional) | ||||
| Audio | 1CH Input, 1CH Output | ||||
| Built-in MIC | Support | ||||
| Built-in Speaker | Support | ||||
| Two-way Audio | Supported (Built in Microphone & Speaker) | ||||
| Snapshot | Remote Timing Snapshot, Mobile View Images Snapshot | ||||
| Motion Detection | Intelligent Multiple Detection Zones (Max. 4 Zones) | ||||
| Alarm Linkage | E-mail Alert and Upload Snapshot to FTP, Relay Out, Mobile Phone App | ||||
| Humanoid/Vehicle Detection | Support | ||||
| Perimeter protect | Tripwire (Support the classification of Human and Vehicle | ||||
| Smart Tracking | N / A | ||||
| Motion Detection | Support | ||||
| Alarm Linkage | Upload to FTP, E-mail, Trigger Alarm Output, Trigger Recording | ||||
| Operating Temp. | Indoor: 0~40°, Outdoor: -40°~+65° | ||||
| Humidity | ≤ 95% Non Condensing | ||||
| Heater & Blower | Auto temperature control | ||||
| Power | DC12V ≤ 4A | ||||
| Power Consumption | ≤ 20W | ||||
| Dimension | 185(L)*185(W)*285(H)mm | ||||
| Weight | 2.5KG | ||||
| Protection Level | IP66, TVS 6000V Lightning Protection, Surge Protection | ||||
| Mounting Bracket | Wall Mount Bracket or Ceiling Mount Bracket | ||||
| Certification | CE / FCC / RoHS | ||||
| ISO | ISO9001 | ||||
