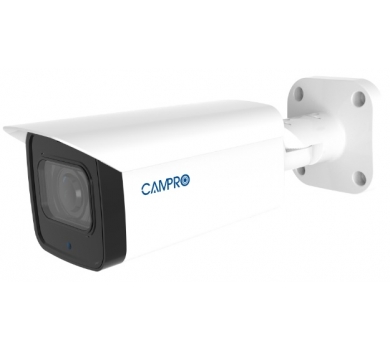

CB-ED302P | |||||
Sensor | 1/2.9" 3.0MP CMOS Sensor | ||||
RAM & Flash | 256Mb RAM / 128Mb ROM | ||||
Minimum Illumination | 0.01 Lux @F1.6(AGC ON), 0Lux (IR ON) | ||||
Shutter Speed | 1/25 s to 1/10,000 s | ||||
Day / Night | Auto / Dual IR-Cut filter / D/N Sensitive Switch / Mixed Mode Swith | ||||
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||||
Lens | 2.8/3.6mm Fixed Focal Lens | ||||
Max. Aperture Ratio | F No. 2.0 | ||||
Min. Object Distance | 2M | ||||
Lens Mount | M 12 | ||||
Max. Aperture | F2.0 | ||||
Iris Type | Auto Iris | ||||
Lens | 2.8mm | 3.6mm | |||
111° | 90° | ||||
50° | 48° | ||||
134° | 108° | ||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8mm | 44.1 | 17.7 | 8.8 | 4.4 | |
3.6mm | 58.9 | 23.6 | 11.8 | 5.9 | |
Supplement Light Type | IR Led*2 up to 25M / 850nm, Warm Light*2 up to 20M | ||||
Supplement Light Range | 25M (D/N) / 20M (Full Color) | ||||
Illuminator Control | Auto / Manual | ||||
Smart IR | Supported | ||||
Max Resolution | 3MP (2304*1296) | ||||
Main Stream | 2304*1296@25/30fps | ||||
Sub Stream | 25/30fps: 2304*1296,1920*1080, 960P:1280*960, 720P: 1280*720 | ||||
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG | ||||
Bit Rate | H.265: 32 Kbps ~ 8912 Kbps, H.264: 32 Kbps ~ 8912 Kbps | ||||
U-code | Supported | ||||
Bit Rate Control | CBR / VBR | ||||
Scalable Video Coding (SVC) | H.265 and H.264 Encoding (H.265+ (Ultra H.265)/H.265/H.264+/H.264/MJPEG) | ||||
Network Protocol | DHCP, DNS, DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF, P2P, PPPOE, QoS, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP, 802.1X | ||||
Protocol | ONVIF / CGI / P2P | ||||
Simultaneous Live View | Up to 16CH | ||||
API | Open Network Video Interface Profile S, G, T, SDK | ||||
User/Host | 5 User (Total bandwidth: 80M), 2 user levels: administrator and user | ||||
Security | Password protection, Watermark | ||||
Video Management Software | IE / Web / PC Client Software / App | ||||
Mobile Client | iOS, Android | ||||
Web Browser | Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ | ||||
Smooth Streaming | Yes | ||||
OSD | Minimum 4 OSDs | ||||
Privacy Mask | Up to 4 Areas (programmable polygon privacy masks) | ||||
WDR | True WDR, ≥120dB | ||||
DNR | 3D DNR (Auto / Manual) | ||||
S/N Ratio | ≥ 56 dB | ||||
BLC / White Balance | Auto | ||||
Image Control | Brightness, Contrast, Sharpness, Saturation | ||||
Gain Control | Auto | ||||
Flip | 0° / 180° | ||||
Mirror | Supported | ||||
BLC | Supported | ||||
Audio | Optional | ||||
Alarm | N / A | ||||
LAN Ports | RJ45*1, 10M/100M Base-T | ||||
Storage | SD Card Slot (Optional) | ||||
Motion Detection | Multiple Detection Zones, Variable Sensitivity Levels | ||||
Snapshot | Support JPEG format | ||||
Security Features | Pass word, Watermark | ||||
OSD | Channel Name, Data & Time, Image Overlay | ||||
Storage | Support FTP Storage | ||||
Alarm Event | Disconnection ; IP Conflict | ||||
Humanoid Detection | Supported | ||||
Smart Motion Detection | Supported | ||||
Case | Metal, Indoor & Outdoor | ||||
Protection Level | IP66 | ||||
Temp. / Humidity | -30°C ~ 60℃ / Less than 95% RH | ||||
Storage Conditions | -40°C ~ 60℃ | ||||
Power Consumption | Max. 3W | ||||
Power Supply | DC12V 2A / POE (IEEE802.3af) | ||||
Lightning Protection | Power, Network, POE all Lightning Protection, meet GB/T17626.5 and IEC61000-4-5 | ||||
Dimenstion | 110 (L)*97 (H) mm / 0.5KG | ||||
Certification | CE / FCC / RoHS | ||||
ISO | ISO9001 |
