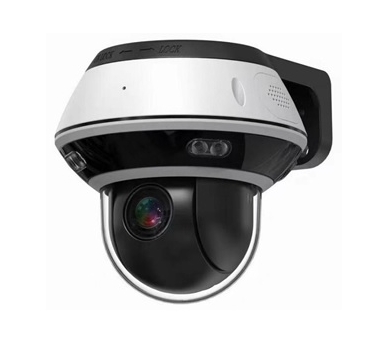

5MP 4X PTZ Camera, 50M IR Range
- 5MP 4X PTZ Camera, 50M IR Range
- 2.8~12mm 4X Optical Zoom
- Humanoid/Vehicle Detection
Description
| CB-VD525P | |||||
| Digital Video Processor | 1/2.8" 5MP CMOS Sensor | ||||
| RAM & ROM | 1GB RAM / 4GB ROM | ||||
| Minimum Illumination | Color: 0.001Lux@F1.6(AGC ON), B/W: 0Lux@IR ON | ||||
| Shutter Speed | Auto / 1/25 ~ 1/10,000s adjustable | ||||
| D/N | Auto, Dual IR-Cut Filter, D/N Sensitive Switch / Mixed Mode Switch | ||||
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||||
| Lens | 2.8 ~ 12mm Motorized 4X Optical Zoom Lens | ||||
| Max. Aperture | F No. 1.6 (W) ~ 3.3(T) | ||||
| Min. Object Distance | 0.3M~INF(W),1.5M~INF(T) | ||||
| Lens Mount | M12 | ||||
| Iris Type | Auto Iris | ||||
| Lens | 2.8 ~ 12mm | ||||
| Angle of View (H) | 106.9° ~ 30.6° (Wide ~ Tele) | ||||
| Angle of View (V) | 56.0° ~ 17.7° (Wide ~ Tele) | ||||
| Angle of View (D) | 139.0° ~ 37.6° (Wide ~ Tele) | ||||
| DORI | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 63.0 | 25.2 | 12.6 | 6.3 | |
| 12.0mm | 270.0 | 108.0 | 54.0 | 27.0 | |
| Supplement Light Type | IR Led*4 up to 50M / 850nm | ||||
| Supplement Light Range | 50M | ||||
| Illuminator Control | Auto / Manual | ||||
| Smart IR | Supported | ||||
| Effective Pixels | 2560*1920@25/30fps | ||||
| Max Resolution | Main Stream@25/30fps: 2560*1920, 2560*1440, 2304*1296, 1920*1080, 1280*960, 1280*720 | ||||
| Sub Stream | Sub Stream@25/30fps: 800*448, 704*576, 640*360, 352*288 | ||||
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG | ||||
| Video Bit Rate | 129Kbps ~ 12Mpbs | ||||
| Bit Rate Control | CBR / VBR | ||||
| Video Compression | H.265+ / H.265 / H.264 | ||||
| Audio Compression | G.711A | ||||
| Audio Bit Rate | Minimum 8 Kbps or Higher | ||||
| Reduce Echo | Support | ||||
| Noise Filtering | Support | ||||
| Audio | 1CH Input, 1CH Output | ||||
| Built-in MIC | Support | ||||
| Built-in Speaker | Support | ||||
| Two-way Audio | Supported (Built in Microphone & Speaker) | ||||
| Network Protocol | CGI, DHCP, DNS, HTTP, IP Filter, IPv4, NTP, ONVIF, P2P, RTSP, TCP/IP, UDP | ||||
| Protocol | ONVIF / CGI / P2P | ||||
| Simultaneous Live View | Up to 16 channels | ||||
| API | SDK | ||||
| User / Host | 6 User, 2 user levels: administrator and user | ||||
| Security | IP address Filter, Complicated Password, Authenticated Username and Password | ||||
| Video Management Software | IE / Web / PC Client Software / App | ||||
| Mobile Client | iOS, Android, PC | ||||
| Web Browser | Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ | ||||
| Streaming Method | Unicast / Multicast | ||||
| Horizontal Rotation Range | 0-355° | ||||
| Horizontal Rotation Speed | Pan Speed: Configurable from 0 to 25°/s | ||||
| Tilt Rotation Range | 0~70° (Auto Flip) | ||||
| Tilt Rotation Speed | Tilt Speed: Configurable from 0 to 20°/s | ||||
| Preset Points | 16 | ||||
| Pattern | Max. 16 Points, Dwell Time user selectable | ||||
| 3D Positioning | Support | ||||
| Park Time | 15 ~ 240s available | ||||
| Dwell Preset | 15 ~ 240s available | ||||
| Power-Off Memory | Support | ||||
| Anti-Flash | 50Hz / 60Hz | ||||
| OSD | OSD Setting, OSD Dragging | ||||
| WDR | DWDR, ≥ 120dB | ||||
| DNR | 2D + 3D DNR (Auto / Manual) | ||||
| S/N Ratio | ≥ 54dB | ||||
| BLC / White Balance | Auto | ||||
| Image Control | Brightness, Contrast, Saturation, Sharpness | ||||
| Gain Control | Auto | ||||
| Flip | Support | ||||
| Mirror | Support | ||||
| Ethernet Interface | RJ45*1, 10M/100M Base-T | ||||
| Storage | Support 256G Micro SD / SDHC / SDXC | ||||
| Motion Detection | Multiple Detection Zones, Variable Sensitivity Levels | ||||
| Snapshot | Support JPEG Format | ||||
| Security Features | Pass word, Watermark (Customized) | ||||
| OSD | Channel Name, Date & Time, Image Overlay | ||||
| Storage | Support FTP Storage | ||||
| Alarm | Mask Alarm, Support Network Anomaly etc. | ||||
| Linkage | FTP / E-mail, Notify Surveillance Center, Trigger Recording, Trigger Capture | ||||
| Alarm Event | Disconnection; IP Conflict | ||||
| Humanoid/Vehicle Detection | Support | ||||
| Motion Detection | Support | ||||
| Abnormity Alarm | Support | ||||
| Case | Metal, Indoor & Outdoor | ||||
| Protection Level | IP67 / IK10 / TVS 6000V Lightning Protection, Surge Protection | ||||
| Temp. / Humidity | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH | ||||
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) | ||||
| Power Consumption | < 15W | ||||
| Power | DC12V 2A / POE (IEEE802.3af) | ||||
| Dimension | 150(W)*140(D)*160(H)mm | ||||
| Weight | 900g | ||||
| Mounting Bracket | Wall Mount Bracket / Ceiling Mount Bracket | ||||
| Certification | CE / FCC / RoHS | ||||
| ISO | ISO9001 | ||||
