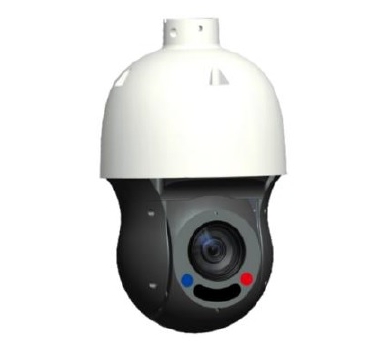

4MP 33X Starlight PTZ Camera, 120M IR (Smart AI)
- 4MP 33X Starlight PTZ Camera, 120M IR Range
- 5.5~180mm 33X Optical Zoom, 16X Digital Zoom
- Auto tracking of all moving targets
- Smart AI: Intrusion,Tripwire,Face Detection,SMD
Description
| CB-33X-1240 | |||||
| Digital Video Processor | 1/2.8" 4MP CMOS Sensor | ||||
| RAM & ROM | 256M RAM / 128M ROM | ||||
| Frame Rate | 2592*1520 | ||||
| Minimum Illumination | Color: 0.001Lux@F1.5(AGC ON), B/W: 0.0005Lux@F1.5(AGC ON) | ||||
| Shutter Speed | Auto / 1/25s - 1/100,000s | ||||
| Slow Shutter | Support | ||||
| Aperture | DC drive | ||||
| D/N Switch | Auto, Dual IR-Cut Filter (Day / Night / Auto / Schedule) | ||||
| IR Illuminator / Wavelength | Up to 120M / 850nm | ||||
| Lens Type | 5.5 ~ 180mm Motorized 33X Optical Zoom Lens | ||||
| Optical Zoom | 33X | ||||
| Digital Zoom | 16X | ||||
| Focus Control | Auto / Semi-Auto / Manual | ||||
| Iris Control | Auto Iris | ||||
| Aperture Value | F1.5 ~ F4.0 | ||||
| Field of View (H) | 58.9° ~ 2.4° (Wide ~ Tele) | ||||
| Field of View (V) | 33.6° ~ 1.4° (Wide ~ Tele) | ||||
| Field of View (D) | 67.2° ~ 2.8° (Wide ~ Tele) | ||||
| Minimum Working Distance | 100mm ~ 1500mm | ||||
| Zoom Speed | Approximately 3.5s | ||||
| DRI | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 5.5mm | 43 | 43 | 21 | 17 | |
| 137.5mm | 1200 | 1200 | 700 | 560 | |
| Video Compression | H.265 Main Profile / H.264 High Profile / H.264 Main Profile / H.264 Baseline Profile / MJPEG | ||||
| Video Bit Rate | 32Kbps ~ 16Mpbs | ||||
| Audio Compression | G.711a / G.711u / G.722.1 / G.726 / MP2L2 / AAC / PCM | ||||
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC) | ||||
| Max. Resolution | 2560*1440@25/30fps | ||||
| Main Stream | 50/60Hz: 25/30fps(2560*1440/1920*1080/1280*720) | ||||
| Sub Stream | 50/60Hz: 25/30fps(704*576/640*480/352*288) | ||||
| Third Stream | 50/60Hz: 25/30fps(704*576/640*480/352*288) | ||||
| Image Setting | Saturation, Brightness, Contrast, Sharpness adjustable by Client Soft. Or Browse | ||||
| Exposure Mode | Auto Exposure / Aperture Priority / Shutter Priority / Manual Exposure | ||||
| Focus Mode | Auto Focus / One Step / Manual Focus / Semi-Auto Focus | ||||
| Area Exposure / Focus | Support | ||||
| Gain Control | Auto / Manual | ||||
| BLC / White balance | BLC: On/Off, White Balance: (Auto / Manual / Lock) | ||||
| Defog | Support | ||||
| Day/Night Switch | Auto, Manual, Timing, Alarm Trigger | ||||
| Flip | Normal / Flip Vertical / Flip Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise | ||||
| HLC | Support | ||||
| Image Stabilization (EIS) | Support | ||||
| DNR | 3D DNR | ||||
| WDR | ≥ 140dB | ||||
| SNR | ≥ 60dB | ||||
| Picture Overlay Switch | Support BMP 24-bit image overlay, customizable area | ||||
| Region of Interest | Support 3 streams and 4 fixed areas | ||||
| Privacy Mask | On/Off, (8 Areas, Rectangle) | ||||
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE | ||||
| API | Onvif (Profile S, Profile G) | ||||
| Baud Rate | 1200 / 2400 / 4800 / 9600bps (Default: 115200bps) | ||||
| Streaming Method | Unicast / Multicast | ||||
| Simultaneous | Live View Up to 9 Channels | ||||
| User / Host | 5 Users | ||||
| Security | Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter, Control Timeout Settings | ||||
| Video Management Software | IE / CMS / PC Client Software / App | ||||
| WEB | IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above | ||||
| Mobile Client | iOS, Android | ||||
| P2P | Support iOS, Android, PC | ||||
| Horizontal Rotation Range | 0-360° endless | ||||
| Horizontal Rotation Speed | Pan Speed: Configurable from 0.1° to 200°/s; Preset Speed: 200°/s | ||||
| Tilt Rotation Range | -18~90° (Auto Flip) | ||||
| Tilt Rotation Speed | Tilt Speed: Configurable from 0.1° to 200°/s; Preset Speed: 200°/s | ||||
| Preset Points | 255 | ||||
| Patrol Scan | 6 Patrols, up to 18 Presets per patrol | ||||
| Pattern | 4 Patterns, with total recording time not less than 10mins | ||||
| A-B Scan | User Programmable | ||||
| A-B Scan Speed | 8 Levels Setting Available | ||||
| 3D Positioning | Support | ||||
| PWR On Action | Memory / Pattern 1 / Tour 1 / 360° Scan / A-B Scan / Preset 1-18 / None | ||||
| Park Time | 5 ~ 720s available | ||||
| Dwell Preset | 10 ~ 120s available | ||||
| Power-Off Memory | Support | ||||
| Anti-Flash | 50Hz / 60Hz | ||||
| IR distance | Up to120M | ||||
| IR intensity | Automatically adjusted, depending on the zoom ratio | ||||
| Ethernet Interface | RJ45*1, 10M/100M set-adaptive | ||||
| Storage | Support 256G Micro SD / SDHC / SDXC offline local storage, NAS (NFS, SMB / CIFS support) | ||||
| Alarm | 1CH Input, 1CH Output (Optional) | ||||
| Audio | 1CH Input, 1CH Output (Optional) | ||||
| Snapshot | Remote Timing Snapshot, Mobile View Images Snapshot | ||||
| Motion Detection | Intelligent Multiple Detection Zones (Max. 4 Zones) | ||||
| Alarm Linkage | E-mail Alert and Upload Snapshot to FTP, Relay Out, Mobile Phone App | ||||
| Basic Event | Motion Detection, Alarm Input and Output | ||||
| Smart AI Function | Area Intrusion Detection,Cross-Border Detection, Entering/Leaving Area Detection, Hovering Detection, Parking Detection, Personnel Gathering Detection, Scene Change Detection (Optional) | ||||
| Alarm Linkage | Upload to FTP, E-mail, Trigger Alarm Output, Trigger Recording | ||||
| Operating Temp. | Indoor: 0 ~ 40°, Outdoor: -40°~ 65℃ | ||||
| Humidity | ≤ 95% Non Condensing | ||||
| Power | AC 24V | ||||
| Power Consumption | ≤ 36W | ||||
| Dimension | 270(W)*160(H)mm | ||||
| Weight | 3.5kg | ||||
| Protection Level | IP66, TVS 4000V Lightning Protection, Surge Protection | ||||
| Mounting Bracket | Wall Mount Bracket or Ceiling Mount Bracket | ||||
| Certification | CE / FCC / RoHS | ||||
| ISO | ISO9001 | ||||
