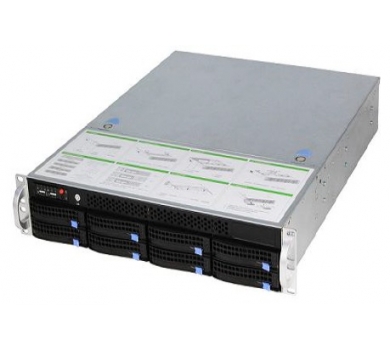

16CH Ultra 4K 8HDD NVR
Back to list

16CH Ultra 4K 8HDD NVR

  • Support H.264 / H.265 Hardware GPU decode
  • Support Linux CMS (Campro NVMS) / Mac / Android / iOS / Campro NVSS Client
  • Support Software RAID5, RAID6 Storage
  • Support Hardware Watchdog
Description
Model No. CB-NVSS-8708-16 CB-NVSS-8708-16R
Main Processor        Intel Core i7-8700 CPU
Operating System  64bit Linux OS
SSD 64G mSata SSD
Memory 16GB
Decoding Format Ultra H.265 / H.265 / H.264
Bandwidth Incoming: 1024Mbps, Outgoing 1024Mbps
IP CH Resolution  Main stream: Up to 4618 x 3464, Auxiliary stream: D1
Frame Rate  NTSC@30fps, PAL@25fps
Recording  16ch@16MP/12MP/8MP/5MP/4MP/3MP/2MP/720P
Preview 4ch@16M or 8ch@8M or 16ch@5M/4M/1080P/720P/D1
Playback 4ch@16M or 8ch@8M or 16ch@5M/4M/1080P/720P/D1
Audio  1ch audio & 1ch Mic in, 1ch audio out, 1ch RCA (Line in, 2Vp-p, 1Kohm)
Audio Compression  G.711U / G.711A / G.726 (64Kbps)
Bidirectional Talk  Support: 1CH, RCA (Line in, 2Vp-p, 1Kohm)
Alarm Input / Output  1CH Input / 1CH Output
Recording Mode  Manual, Schedule(Continuous, Motion detection, Sensor Alarm), Stop
Alarm Recording  Motion Detection, External Alarm
Backup Mode  Network Download / USB HDD / Mobile DVD
Video output  1ch VGA + 2ch HDMI + 1ch DP, HDMI output 4K Output
Multi-split Display  Main: 1/4/6/9/13/16/20/25/33/36/40/49/64/81/100/121/144 splits, sub: 1/4/6/9/13/16 split
HDMI/VGA Output   3840*2160(HDMI) / 1920*1080 / 1680*1050 / 1440*900 / 1280*1024 / 1024*768
Snap Shot  Support JPEG format
Client Soft / Mobile App IE / Web / CAMPRO NVSS / Campro NVSS Client APP
P2P Support IOS / Android / PC
DDNS Built in Free DDNS
Network Protocol  TCP / IP, UDP, HTTP, RTP / RTSP
Network Function  DDNS, DHCP, FTP, iSCSI, NFS, NTP, PPPOE, SADP, SNMP, SMTP, SNTP, UPnP, P2P
VCA Face Detection / Intrusion Detection / Movement Direction Detection / Missing Object Detection / Unattended Object Detection / Tripwire
Performance  Max deal 16pcs Face per Second
Face Detect Camera  Support 16pcs input
Face Data Base  80'000
Interface 2 RJ-45 ports (1000M)
Power Supply  400W, 47-63Hz, 100~240VAC  450W Redundancy Power, 47-63Hz, 100~240VAC
Hard Disk 8 SATA, Max. 16TB for each; Independent HDD Rack, Support Hot Swap, RAID storage
Array Type  RAID5, RAID6
USB 6 USB ports
Temperature / Humidity 0°C~60℃ / 10~85% (non-condensation)
Weight  12kg
Dimension 560(W) x 440(D) x 88(H) mm; 2U Case
