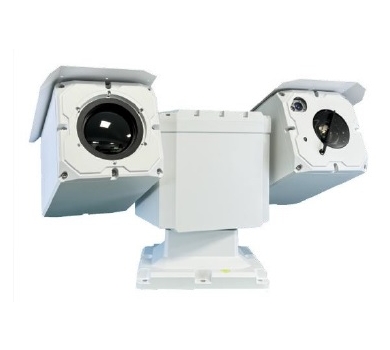

4MP 120X Starlight Thermal & Optical Bi-Spectrum PTZ Camera, 10KM Laser Range (Smart AI)
- 640*512, 12μm/30~150mm Uncooled Amorphous Silicon Focal Plane Arrays Detector
- 4MP 120X Starlight PTZ Camera, 10KM Laser Range, 10.5~1260mm 120X Optical Zoom, 16X Digital Zoom
- Auto-Induction Wiper, Ultra long range with Harmonic Drive System, High Precision Worm-Gear Driving
- Auto tracking of all moving targets
- Area Intrusion, Perimeter Detection, Fire Detection
- Smart AI: Vehicle, Non-Motor Vehicle, Human Body Detection
Description
| CB-120X-TH10K40 | |||||
| Detector Type | VOx Uncooled Amorphous Silicon Focal Plane Arrays Detector | ||||
| Effective Pixels | 640(H) * 512(V) | ||||
| Pixel Pitch | 12μm | ||||
| Spectral Range | 8μm~14μm | ||||
| Sensitivity (NETD) | ≤ 50mK@F1.0 | ||||
| Focal Length | 30~150mm | ||||
| Field of View (H) / (V) | 2.9°~2.3° / 14.7° ~ 11.7° | ||||
| Detection Distance | Vehicles: 1.4*4.0m / 33333M, Humans: 1.8*0.5m) / 15000M | ||||
| Recognition Distance | Vehicles: 1.4*4.0m / 8333M, Humans: 1.8*0.5m) / 3750M | ||||
| Identification Distance | Vehicles: 1.4*4.0m / 4167M, Humans: 1.8*0.5m) / 1875M | ||||
| Focus Control | Auto / Semiautomatic / Manual | ||||
| Digital Zoom | 1X~4X, Continuing Zooming 30~150mm (Step 0.1), Zoom in any area | ||||
| Digital Detail Enhancement | Yes | ||||
| Thermal Image Stabilization | Electronic Image Stabilization (EIS) | ||||
| Thermal AGC | Auto / Manual | ||||
| Thermal Noise Reduction | 2D / 3D DNR | ||||
| Image Flip | 180° | ||||
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) | ||||
| Digital Video Processor | 1/1.8" 4MP CMOS Sensor | ||||
| RAM & ROM | 1GB RAM / 8GB ROM | ||||
| Frame Rate | 2560*1440 | ||||
| Minimum Illumination | Color: 0.0005Lux@F1.4(AGC ON), B/W: 0.0001Lux@F1.4(AGC ON) | ||||
| Shutter Speed | Auto / 1/25s - 1 ~ 100,000s | ||||
| Slow Shutter | Support | ||||
| Aperture | DC drive | ||||
| D/N Switch | Auto, Dual IR-Cut Filter (Day / Night / Auto / Schedule) | ||||
| Lens Type | 10.5 ~ 1260mm Motorized 120X Optical Zoom Lens | ||||
| Optical Zoom | 120X | ||||
| Digital Zoom | 16X | ||||
| Focus Control | Auto / Semi-Auto / Manual | ||||
| Iris Control | P-Iris | ||||
| Aperture Value | Max. F2.1 ~ F11.2 | ||||
| Field of View (H) | 38.4° ~ 0.34° (Wide ~ Tele) | ||||
| Field of View (V) | 22.6° ~ 0.13° (Wide ~ Tele) | ||||
| Field of View (D) | 43.3° ~ 0.38° (Wide ~ Tele) | ||||
| Minimum Working Distance | 1M ~ 10M | ||||
| Zoom Speed | Approximately 9s | ||||
| DRI | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 10.5mm | 89 | 89 | 44 | 35 | |
| 1260mm | 10700 | 10700 | 5350 | 4200 | |
| Video Compression | H.265 Main Profile / H.264 High Profile / H.264 Main Profile / H.264 Baseline Profile / MJPEG | ||||
| Video Bit Rate | 32Kbps ~ 16Mpbs | ||||
| Audio Compression | G.711a / G.711u / G.722.1 / G.726 / MP2L2 / AAC / PCM | ||||
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC) | ||||
| Max. Resolution | 2560*1440@25/30fps | ||||
| Main Stream | 50/60Hz: 25/30fps(2560*1440/1920*1080/1280*960/1280*720) | ||||
| Sub Stream | 50/60Hz: 25/30fps(704*576/640*480/352*288) | ||||
| Third Stream | 50/60Hz: 25/30fps(704*576) | ||||
| Image Setting | Saturation, Brightness, Contrast, Sharpness adjustable by Client Soft. Or Browse | ||||
| Exposure Mode | Auto Exposure / Aperture Priority / Shutter Priority / Manual Exposure | ||||
| Focus Mode | Auto Focus / One Step / Manual Focus / Semi-Auto Focus | ||||
| Area Exposure / Focus | Support | ||||
| Gain Control | Auto / Manual | ||||
| BLC / White balance | BLC: On/Off, White Balance: (Auto / Manual / Lock) | ||||
| Defog | Support | ||||
| Day/Night Switch | Auto, Manual, Timing, Alarm Trigger | ||||
| Flip | Normal / Flip Vertical / Flip Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise | ||||
| HLC | Support | ||||
| Image Stabilization (EIS) | Support | ||||
| DNR | 3D DNR | ||||
| WDR | ≥ 140dB | ||||
| SNR | ≥ 60dB | ||||
| Picture Overlay Switch | Support BMP 24-bit image overlay, customizable area | ||||
| Region of Interest | Support 3 streams and 4 fixed areas | ||||
| Privacy Mask | On/Off, (8 Areas, Rectangle) | ||||
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE | ||||
| API | Onvif (Profile S, Profile G), PSIA, CGI | ||||
| Baud Rate | 1200 / 2400 / 4800 / 9600bps (Default: 115200bps) | ||||
| Streaming Method | Unicast / Multicast | ||||
| Simultaneous | Live View Up to 20 Channels | ||||
| User / Host | 5 Users | ||||
| Security | Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter, Control Timeout Settings | ||||
| Video Management Software | IE, Web | ||||
| WEB | IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above | ||||
| Mobile Client | iOS, Android | ||||
| P2P | Support iOS, Android, PC | ||||
| 3D Intellectual | Support | ||||
| Horizontal Rotation Range | 0-360° | ||||
| Horizontal Rotation Speed | Pan Speed: Configurable from 0.05° to 150°/s | ||||
| Tilt Rotation Range | -90~90° | ||||
| Tilt Rotation Speed | Tilt Speed: Configurable from 0.05° to 100°/s | ||||
| Proportional Zoom | Yes | ||||
| Motor Drive | Harmonic Gear Drive | ||||
| Positioning Accuracy | Pan: 0.003°, Tilt: 0.001° | ||||
| Closed Loop Feedback Control | Support | ||||
| Remote Upgrade | Support | ||||
| Remote Reboot | Support | ||||
| Preset Points | 256 | ||||
| Patrol Scan | 8 Patrols, up to 32 Presets per patrol | ||||
| Pattern | 4 Patterns, with total recording time not less than 10mins | ||||
| Scheduled Task | Preset, Pattern Scan, Patrol Scan, Auto Scan | ||||
| Park Action | Preset, Pattern Scan, Patrol Scan, Auto Scan | ||||
| 3D Positioning | Support | ||||
| PTZ Status Display | Support | ||||
| Preset Freezing | Support | ||||
| Park Time | 5 ~ 720s available | ||||
| Dwell Preset | 10 ~ 120s available | ||||
| Power-Off Memory | Support | ||||
| Anti-Flash | 50Hz / 60Hz | ||||
| Wiper | Automatic Induction Wiper (Auto / Manual) | ||||
| LRF Distance | Up to 10KM | ||||
| LRF Accuracy | 1M | ||||
| Ethernet Interface | RJ45*1, 10M/100M set-adaptive | ||||
| Storage | Support 256G Micro SD / SDHC / SDXC offline local storage, NAS (NFS, SMB / CIFS support) | ||||
| Alarm | 1CH Input, 1CH Output | ||||
| Audio | 1CH Input, 1CH Output | ||||
| RS-485 | RS-485*1 | ||||
| Video Output | 1CH Thermal Imaging Video, Network Video, 1CH HD Video, Network Video (via RJ-45) | ||||
| Snapshot | Remote Timing Snapshot, Mobile View Images Snapshot | ||||
| Motion Detection | Intelligent Multiple Detection Zones (Max. 4 Zones) | ||||
| Alarm Linkage | E-mail Alert and Upload Snapshot to FTP, Relay Out, Mobile Phone App | ||||
| Basic Event | Motion Detection, Alarm Input and Output | ||||
| Alarm Linkage | Upload to FTP, E-mail, Trigger Alarm Output, Trigger Recording | ||||
| Smart Detection | Area Intrusion | ||||
| Perimeter Detection | Support | ||||
| Smart Event | Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Intrusion Detection | ||||
| Fire Detection | Support | ||||
| Auto Tracking | Vehicle / Non-Vehicle / Human Detection and Auto Tracking | ||||
| Intelligent Computing Power | 5T | ||||
| Operating Temp. | Indoor: 0 ~ 40°, Outdoor: -40°~ 70℃ | ||||
| Humidity | ≤ 95% Non Condensing | ||||
| Power | DC 48V / 6A | ||||
| Power Consumption | ≤ 72W | ||||
| Dimension | 950(W)*485(H)*459(L)mm | ||||
| Weight | 60kg | ||||
| Protection Level | IP67, TVS 6000V Lightning Protection, Surge Protection | ||||
| Mounting Bracket | Mast Mounting | ||||
| Certification | CE / FCC / RoHS | ||||
| ISO | ISO9001 | ||||
