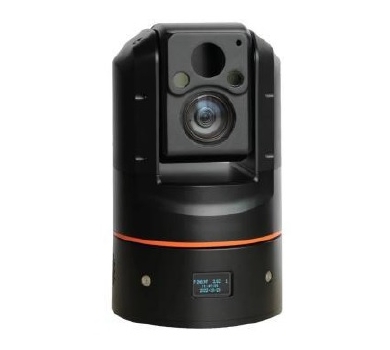

4MP 33X Starlight 5G Vehicle Thermal & Optical Bi-Spectrum PTZ Camera, 50M IR Range
- 640x512, 12μm/25mm Uncooled Amorphous Silicon Focal Plane Arrays Detector
- 4MP 33X Starlight 5G Vehicle PTZ Camera, 50M Laser, 5.5~180mm 33X Optical Zoom, 16X Digital Zoom
- Built in 5G, GPS, WIFI (Fully compatible with 5G, 4G)
- Auto tracking of all moving targets
- Quick removable 14.4V 6700mah (96.48wh) Lithium battery max. 10 hours operation
Description
| CB-33X-TH2540 | |||||
| Detector Type | VOx Uncooled Amorphous Silicon FPA Detector | ||||
| Effective Pixels | 640(H) * 512(V) | ||||
| Pixel Pitch | 12μm | ||||
| Spectral Range | 8μm~14μm | ||||
| Sensitivity (NETD) | ≤ 50mK@F1.0 | ||||
| Focal Length | 25mm | ||||
| Field of View (H) / (V) | 17.4° / 13.9° | ||||
| Min. Focus Distance | 23M | ||||
| Detection Distance | Vehicles: 1.4*4.0m / 5556M, Humans: 1.8*0.5m) / 2500M | ||||
| Recognition Distance | Vehicles: 1.4*4.0m / 1389M, Humans: 1.8*0.5m) / 625M | ||||
| Identification Distance | Vehicles: 1.4*4.0m / 694M, Humans: 1.8*0.5m) / 312.5M | ||||
| Focus Control | Auto / Semiautomatic / Manual | ||||
| Digital Zoom | 1X, 2X, 4X, 8X | ||||
| Digital Detail Enhancement | Yes | ||||
| Thermal Image Stabilization | Electronic Image Stabilization (EIS) | ||||
| Thermal AGC | Auto / Manual | ||||
| Thermal Noise Reduction | 2D NR / 3D NR | ||||
| Image Flip | 180° | ||||
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) | ||||
| Digital Video Processor | 1/2.8" 4MP CMOS Sensor | ||||
| RAM & ROM | 1GB RAM / 8GB ROM | ||||
| Frame Rate | 2560*1440 | ||||
| Minimum Illumination | Color: 0.0005Lux@F1.5(AGC ON), B/W: 0.0001Lux@F1.5(AGC ON) | ||||
| Shutter Speed | Auto / 1/25s - 1 ~ 100,000s | ||||
| Slow Shutter | Support | ||||
| Aperture | DC drive | ||||
| D/N Switch | Auto, Dual IR-Cut Filter (Day / Night / Auto / Schedule) | ||||
| IR Illuminator / Wavelength | Up to 50M / 850nm | ||||
| Lens Type | 5.5 ~ 180mm Motorized 33X Optical Zoom Lens | ||||
| Optical Zoom | 33X | ||||
| Digital Zoom | 16X | ||||
| Focus Control | Auto / Semi-Auto / Manual | ||||
| Iris Control | Auto Iris | ||||
| Aperture Value | F1.5 ~ F4.0 | ||||
| Field of View (H) | 58.9° ~ 2.4° (Wide ~ Tele) | ||||
| Field of View (V) | 33.6° ~ 1.4° (Wide ~ Tele) | ||||
| Field of View (D) | 67.2° ~ 2.8° (Wide ~ Tele) | ||||
| Minimum Working Distance | 100mm ~ 1500mm | ||||
| Zoom Speed | Approximately 3.5s | ||||
| DRI | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 5.5mm | 43 | 21 | 21 | 17 | |
| 180mm | 1200 | 700 | 700 | 560 | |
| Video Compression | H.265 Main Profile / H.264 High Profile / H.264 Main Profile / H.264 Baseline Profile / MJPEG | ||||
| Video Bit Rate | 32Kbps ~ 16Mpbs | ||||
| Audio Compression | G.711a / G.711u / G.722.1 / G.726 / MP2L2 / AAC / PCM | ||||
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC) | ||||
| Max. Resolution | 2560*1440@25/30fps | ||||
| Main Stream | 50/60Hz: 25/30fps(2560*1440/1920*1080/1280*960/1280*720) | ||||
| Sub Stream | 50/60Hz: 25/30fps(704*576/640*480/352*288) | ||||
| Third Stream | 50/60Hz: 25/30fps(704*576) | ||||
| Image Setting | Saturation, Brightness, Contrast, Sharpness adjustable by Client Soft. Or Browse | ||||
| Exposure Mode | Auto Exposure / Aperture Priority / Shutter Priority / Manual Exposure | ||||
| Focus Mode | Auto Focus / One Step / Manual Focus / Semi-Auto Focus | ||||
| Area Exposure / Focus | Support | ||||
| Gain Control | Auto / Manual | ||||
| BLC | Support | ||||
| White balance | Auto / Manual / Tracking / Outdoor / Indoor / Auto Sodium Lamp / Sodium Lamp | ||||
| Defog | Support | ||||
| Day/Night Switch | Auto, Manual, Timing, Alarm Trigger | ||||
| Flip | Normal / Flip Vertical / Flip Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise | ||||
| HLC | Support | ||||
| Image Stabilization (EIS) | Support | ||||
| DNR | 2D + 3D DNR | ||||
| WDR | ≥ 140dB | ||||
| SNR | ≥ 60dB | ||||
| Picture Overlay Switch | Support BMP 24-bit image overlay, customizable area | ||||
| Region of Interest | Support 3 streams and 4 fixed areas | ||||
| Privacy Mask | On/Off, (8 Areas, Rectangle) | ||||
| Protocol Standard | IEEE 802.11a / IEEE 802.11an / IEEE 802.11ac | ||||
| Communication Speed | 866Mbps | ||||
| Channel Selection | 36 ~ 165 Band | ||||
| Band Width | 20 / 40 / 80MHz (Optional) | ||||
| WIFI Security | WPA-PSK, WPA2-PSK, WPA-PSK, WPA2-PSK | ||||
| Protocol Standard | 3GPP Release 15 | ||||
| Network Mode | NSA / SA | ||||
| Working Band & Frequency | 5G NR | DL 4x4 MIMO (n1/41/77/78/79), DL 2x2 MIMO (n20/28) | |||
| 5G NR | UL 2x2 MIMO (n41/77/78/79), DL 256 QAM, UL 256 QAM | ||||
| LTE | DL 2x2 MIMO (b1/2/3/4/5/7/8/20/26/28/34/38/39/40/41) | ||||
| LTE | DL 256 QAM, UL 64 QAM | ||||
| WCDMA | B1/8 | ||||
| SIM Card | Support dual NANO SIM Card | ||||
| Positioning System | GPS Navigation Satellite System | ||||
| Battery Type | Quick removable Lithium battery with high capacity | ||||
| Capacity | 14.4V 6700mah (96.48wh) | ||||
| Duration | 10 hours (IR Closed, Low Power Mode) | ||||
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE | ||||
| API | Onvif (Profile S, Profile G), PSIA, CGI | ||||
| Baud Rate | 1200 / 2400 / 4800 / 9600bps (Default: 115200bps) | ||||
| Streaming Method | Unicast / Multicast | ||||
| Simultaneous | Live View Up to 20 Channels | ||||
| User / Host | 5 Users | ||||
| Security | Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter, Control Timeout Settings | ||||
| Video Management Software | IE, CMS, PC Client Software / App | ||||
| WEB | IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above | ||||
| Mobile Client | iOS, Android | ||||
| P2P | Support iOS, Android, PC | ||||
| Horizontal Rotation Range | 0-360° endless | ||||
| Horizontal Rotation Speed | Pan Speed: Configurable from 0.06° to 80°/s | ||||
| Tilt Rotation Range | -25~90° | ||||
| Tilt Rotation Speed | Tilt Speed: Configurable from 0.05° to 60°/s | ||||
| Preset Points | 255 | ||||
| Patrol Scan | 6 Patrols, up to 18 Presets per patrol | ||||
| Pattern | 4 Patterns, with total recording time not less than 10mins | ||||
| A-B Scan | User Programmable | ||||
| A-B Scan Speed | 8 Levels Setting Available | ||||
| 3D Positioning | Support | ||||
| PWR On Action | Memory / Pattern 1 / Tour 1 / 360° Scan / A-B Scan / Preset 1-18 / None | ||||
| Park Time | 5 ~ 720s available | ||||
| Dwell Preset | 10 ~ 120s available | ||||
| Power-Off Memory | Support | ||||
| Anti-Flash | 50Hz / 60Hz | ||||
| IR Distance | Up to50M | ||||
| IR Intensity | Automatically adjusted, depending on the zoom ratio | ||||
| SIM Card Interface | NANO SIM Slot*2, Dual SIM Cards, Single Standby | ||||
| SD Card Interface | Support 256G Micro SD / SDHC / SDXC offline local storage, NAS (NFS, SMB / CIFS support) | ||||
| Ethernet Interface | RJ45*1, 10M/100M set-adaptive | ||||
| Power Interface | DC5.5*2.1F | ||||
| Alarm | 1CH Input, 1CH Output | ||||
| Audio | 2CH Input, 2CH Output | ||||
| Microphone | Built-in Microphone*2 | ||||
| Speaker | Built-in Speaker*2 | ||||
| RS-485 | RS-485*1 | ||||
| Video Output | 1CH Thermal Imaging Video, Network Video, 1CH HD Video, Network Video (via RJ-45) | ||||
| Snapshot | Remote Timing Snapshot, Mobile View Images Snapshot | ||||
| Motion Detection | Intelligent Multiple Detection Zones (Max. 4 Zones) | ||||
| Alarm Linkage | E-mail Alert and Upload Snapshot to FTP, Relay Out, Mobile Phone App | ||||
| Basic Event | Motion Detection, Alarm Input and Output | ||||
| Smart Tracking | Auto Tracking | ||||
| Alarm Linkage | Upload to FTP, E-mail, Trigger Alarm Output, Trigger Recording | ||||
| Operating Temp. | Indoor: 0 ~ 40°, Outdoor: -40°~ 65℃ | ||||
| Humidity | ≤ 95% Non Condensing | ||||
| Power | DC 12V ~ 24V | ||||
| Power Consumption | ≤ 45W | ||||
| Dimension | 160(W)*275(H)mm | ||||
| Weight | 4.5kg | ||||
| Protection Level | IP66, TVS 4000V Lightning Protection, Surge Protection | ||||
| Mounting Bracket | Vehicle Mount, Ceiling Mount, Tripod Mount | ||||
| Certification | CE / FCC / RoHS | ||||
| ISO | ISO9001 | ||||
