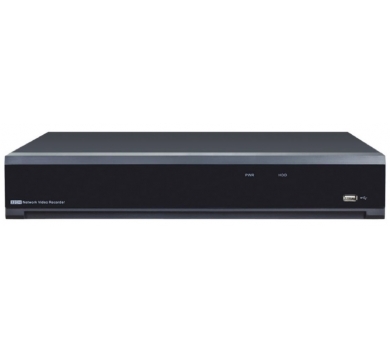

16CH AI-Lite H.265 Ultra 4K 2*HDD NVR
- Input Bandwidth 96Mbps (up to 16CH 4K 8MP)
- 16CH of Perimeter / Face / Object / Smart Motion Detection
- 2 x 10TB SATA HDD / AI Search / Two-way Voice
Description
| CB-NVR-9216 (E) | |
| CH & Compression | 16CH H.265 / H.264 |
| Chipset / RAM | 8G DDR3 |
| Operation System | Embedded Linux |
| Operation Interface | Web / Operating in local GUI |
| Synchronous Preview | 16 |
| Multi Screen Display | 1/4/8/9/16 |
| Input Bandwidth | 96Mbps (Up to 16CH 4K 8MP) |
| Out Bandwidth | 96Mbps |
| IPC Input | 16CH |
| Audio Input | 1CH, RCA (Line in, 2Vp-p, 300Ω), Voice Intercom |
| VGA Output | 1CH, 1920x1080, 1280x1024, 1280x720 |
| HDMI Output | 1CH, 3840x2160, 1920x1080, 1280x1024, 1280x720 |
| Audio Output | 1CH, RCA (Line out, 2Vp-p, 300Ω) |
| Audio Compression | G.711A |
| Audio Bit Rate | 8Kbps (16bit) |
| IP CH Resolution | Main stream: Up to 3840*2160, Auxiliary stream: D1 |
| Video Decoding | H.265+ / H.265 / H.264 |
| Audio Decoding | G.711A / G711U / G726 |
| Sync, Playback | Up to 16CH (Manual > Alarm (Motion Detection) > Timing) |
| Decoding Capability | 1CH*8MP@25fps/30fps, 8CH*D1@25fps/30fps, 1CH*5MP@25fps/30fps, 16CH*D1@25fps/30fps |
| Intelligent Analysis | AI by camera: Face Detection, Smart Motion Detection, Perimeter Protection, Perimeter Protection: Intrusion, Tripwire (support the classification of Human and Vehicle), Work with IPC support these functions and AI search |
| Perimeter Detection | 16CH |
| Face Detection | 16CH |
| Object Detection | 16CH |
| Smart Motion Detection | 16CH |
| Recording Mode | Manual, Schedule(Normal, Motion Detection, Alarm, Intelligent) |
| AI Search | Search by target classification (Human, Vehicle, Non Motor) |
| Playback | Play, Pause, Stop, Fast Forward, Fast Backward, Rewind, Play by Frame |
| Quick Access IPC | Support One Click adding IPC |
| Alarm Linkage | Recording, Snap Shot, Buzzer, Log, Preset, Alarm Push, E-mail |
| Bidirectional Talk | Two-Way Voice Intercom |
| Motion Detection | Zones: 396(22*18), Multi-level Sensitivity: level 1~6 |
| Snap Shot | Support JPEG format (Support upload snapshot and video backup to third-party cloud service such as Dropbox, Google Drive) |
| Smart Phone | iOS, Android |
| Backup | USB Device |
| P2P / Cloud Storage | Support / Support Google Drive |
| CMS / Mobile App | IE / Web / PC Client Software / App |
| Interoperability | ONVIF, SDK |
| WEB | IE 8/10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above |
| Network Protocol | DNS, DDNS, DHCP, FTP, HTTP, IPv4, IP Filter, NTP, ONVIF, P2P, PPPOE, RTP/RTSP, SMTP, SNMP,TCP/IP, UDP, UPnP, Auto Register |
| 3G Dongle | Support |
| DDNS | Built in Free DDNS |
| Remote Operation | Monitoring, PTZ Control, Playback, System Setting, File Download, Log Information |
| SATA HDD Interface | 2 x 10TB HDD |
| POE Port | 16 |
| Network Port | RJ45; 10M / 100M / 1000M, Self-Adaptive Ethernet Interface |
| VGA Port | 1 |
| HDMI Port | 1 |
| CVBS Port | 1 |
| USB Port | 1*USB 2.0 (Front Panel), 1*USB 2.0 (Rear Panel) |
| RCA Input / Output | 1CH In / 1CH Out |
| Dimension | 326*243*52mm |
| Weight | 1.3kg (Not including HDD) |
| Power Supply | DC12V / 4A |
| Power Consumption | < 15W (without HDD, without POE) |
| Operation Temp. | -10°C~55℃ |
| Humidity | 10~95% |
| Certification | CE / FCC / RoHS |
| ISO | ISO9001 |
