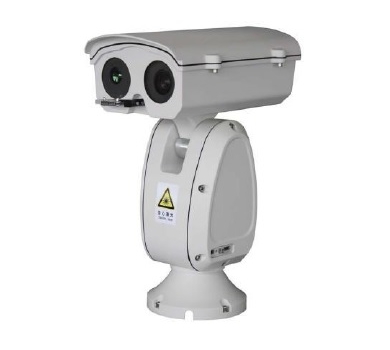

4.5" 10X 2.0MP HD IP 60M IR Pan Tilt Camera
- 2.0MP 1/2.8" CMOS Sensor ( Hi3516E V200 + SONY IMX307)
- 1920*1080 (1080P) / Day & Night / SD & SDHC Card
- 4pcs Array IR + 2 Laser LED / IP66 / IR Range 60M
Description
| CB-PT9020-10 | |
| Sensor | 2.0MP 1/2.8" CMOS Sensor (Hi3516E V200 + SONY IMX 307) |
| Frame Rate | 1080P (1920*1080) |
| Minimum Illumination | Color: 0.01 Lux @ F1.2(AGC ON), B/W: 0.001Lux @ F1.2(AGC ON) |
| Lens | 5.1-51mm Motorized Auto Focus ICR 10X Zoom Lens |
| Electronics Shutter | Auto / 1/25S - 1/10,000S adjustable |
| Aperture Value | F1.6 ~ F2.8 |
| View of Angle | H: WIDE 51.8°, TELE 5.86° V: WIDE 39.1°, TELE 4.4° |
| Day / Night | Auto / Dual IR-Cut filter |
| BLC / White Balance | BLC: On/Off, AWB |
| DNR | 2D + 3D DNR |
| WDR | DWDR |
| S/N Ratio | More than 52 dB |
| Video Encoding | H.265 +, H.265 Main Profile / H.264 High Profile / H.264 Main Profile / H.264 Baseline Profile |
| Video Compression | H.265 / H.264 / M-JPEG |
| Max Resolution | Main Stream: 1920*1080@25/30fps, , Sub Stream: 704*576@25/30fps |
| Bit Rate | 32Kbps ~ 10Mpbs |
| Audio Encoding | G.711A(64Kbps) / PCM |
| LAN Ports | RJ45*1, 10M/100M |
| Network Protocol | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHC, DNS, IP Filter, PPPOE, DDNS, FTP |
| Protocol | ONVIF2.6 / CGI / GB28281 |
| Software Control | IE, CMS, Management Platform |
| Storage (Optional) | One SD / SDHC card |
| Mobile View (Optional) | Support Windows, Symbian, iPhone Platform Smartphone |
| Horizontal Rotation Range | 0° - 200° |
| Tilt Rotation Range | -45° - 40° |
| Pan Rotation Speed | 0° - 30°/s |
| Tilt Rotation Speed | 0° - 25°/s |
| Guard Tours | 3 Groups |
| Guard Points | Max. 16 Points, Dwell Time user Selectable |
| Preset Points | 220 |
| AB Scan Range | Any Point Range: -45° - 40° and 0° - 200° |
| AB Scan Speed | 1-9 Grades |
| Operation Menu | Multiple Languages for OSD Menu |
| Motion Detection | Support |
| Pan/Tilt Position Display | Support |
| Auto Control IR LED | PWM |
| Ambient Light Detection | IR Illumination on 1-15 Grades Selectable |
| Communication Protocol | Pelco-D, Pelco-P |
| IR Range | 60M, 4pcs 42 MIL Array IR + 2 Laser Led |
| Baud Rate | 1200 / 2400 / 4800 / 9600bps (Default: 2400bps) |
| Operating Temp. | Indoor: 0° - 40°, Outdoor: -40° - 60℃ |
| Humidity | ≤95% Non Condensing |
| Power | DC12V ≤ 3A |
| Power Consumption | < 15W |
| Lighting Protection | Transient Voltage 6000V |
| Weight | 1.3KG (N.W.) / 1.6KG (G.W) |
| Related Validation | IP66 |
| Certification | CE / FCC / RoHS |
