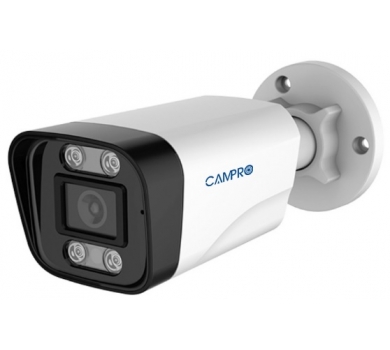

2MP AHD D&N 30M IR Bullet Camera
- 1/2.9" 2MP CMOS Sensor / HD 1080P
- IR Range 30M / 3.6/6.0mm Fixed Lens
- Auto D&N / DNR / Mobile App / P2P
Description
| CB-BS201A | |||||
| Sensor | 1/2.9" 2MP CMOS Sensor | ||||
| Total Pixels | 1936(H)*1096(V) | ||||
| Effective Pixels | 1936(H)*1096(V) | ||||
| RAM & Flash | 1MB Flash | ||||
| Resolution | 1920(H)*1080(V) 25/30fps | ||||
| Frame Rate | AHD / CVI / TVI : PAL@25fps / NTSC@30fps, CVBS: 960H | ||||
| Minimum Illumination | Color: 0.08 Lux @ F1.0(AGC ON), B/W: 0Lux @IR ON | ||||
| Lens | 3.6/6.0mm Fixed Focus Lens | ||||
| Lens Mount | M12 | ||||
| Max. Aperture Ration | F No. 1.0 | ||||
| Min. Object Distance | 1M | ||||
| Iris Type | Auto | ||||
| Lens | 3.6mm | 6.0mm | |||
| 92° | 57° | ||||
| 45° | 30° | ||||
| 111° | 65° | ||||
| DORI | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 3.6mm | 58.9 | 23.6 | 11.8 | 5.9 | |
| 6.0mm | 82.8 | 33.1 | 16.6 | 8.3 | |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||||
| IR Range / Wavelength | 4*Array IR Led up to 30M / 850nm | ||||
| Electronics Shutter | Auto | ||||
| Day / Night | Auto (Ext / Color / B/W) | ||||
| Gain Control | Auto | ||||
| White Balance | ATW | ||||
| Blacklight Compensation | Global / BLC / HLC | ||||
| DNR | 2D DNR | ||||
| WDR | DWDR | ||||
| S/N Ratio | More Than 52dB (AGC OFF) | ||||
| Image Controls | Brightness, Sharpness, Contrast, Saturation | ||||
| Camera Title | On / Off | ||||
| Mirror Function | Flip / Rotation | ||||
| OSD | OSD Setting | ||||
| Remote Control interface | ACP (AHD Coax Protocol) | ||||
| Transmission Distance | RG59 Coaxial Cable -300M / RG6U Coaxial Cable -500M | ||||
| Client Soft | IE, Web, VMS Pro Client | ||||
| WEB | IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above | ||||
| Mobile App | Support | ||||
| P2P | Support iOS, Android, PC | ||||
| Protection Level | IP66 | ||||
| Temp. / Humidity | -30°C ~ 60℃ / within 95% RH | ||||
| Power Consumption | IR OFF ≤ 1W, IR ON ≤ 4W | ||||
| Power Supply | DC12V ± 10% | ||||
| Case | Metal, Indoor & Outdoor | ||||
| Dimenstion | 167 (L)*66 (W)*58 (H) mm / 0.6KG | ||||
| Certification | CE / FCC / RoHS | ||||
| EMC | CE-EMC:2014/30/EU, EN55032:2015+AC: 2016, EN55035:2017 | ||||
| FCC | FCC Part15 subpart B Procedure∶ ANSI C63.4-2014 | ||||
| RoHS | ROHS: (EU) 2017/2012 IEC62321:2013 | ||||
| ISO | ISO9001 | ||||
