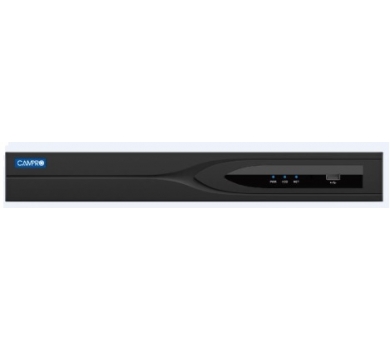

16CH Smart AI H.265 Ultra 4K 8*HDD NVR
Back to list

16CH Smart AI H.265 Ultra 4K 8*HDD NVR

  • Decoding Capability: 16CH*720P@30fps / 16CH*1080P@30fps / 8CH*4K@30fps / 5CH*12MP@30fps
  • 16CH of each Perimeter / Face / Object / Smart Motion Detection
  • 8 x 14TB SATA HDD / AI Search / 16CH Alarm In & 4CH Out
Description
CB-NVR-9516
CH & Compression       16CH H.265 / H.264
Chipset / RAM 1.5G DDR3
Operation System  Embedded Linux
Operation Interface Web / Operating in local GUI
Synchronous Preview 16
Multi Screen Display  1/4/8/9/16
Video Resolution  12MP, 8MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 1.0MP
Input Bandwidth  200Mbps (Up to 16CH 4K 8MP, 5CH 12MP)
Out Bandwidth  200Mbps
IPC Input  16CH
Audio Input  1CH, RCA (Line in, 2Vp-p, 300Ω), Voice Intercom
VGA Output  1CH, 1920x1080, 1280x1024, 1280x720
HDMI Output  Standard 1.4b, 3840x2160, 1920x1080, 1280x1024, 1280x720
Audio Output  1CH, RCA (Line out, 2Vp-p, 300Ω)
Audio Compression  G.711A
Audio Bit Rate  64Kbps (16bit)
IP CH Resolution  Main stream: Up to 4000*3000, Auxiliary stream: D1
Video Decoding  H.265+ / H.265 / H.264
Audio Decoding  G.711A / G711U / G726
Sync, Playback  Up to 16CH (Tag / Smart / External Search)
Decoding Ability  16CH*720P@30fps / 16CH*1080P@30fps / 8CH*4K@30fps / 5CH*12MP@30fps
Intelligent Analysis
AI by camera: Face Detection, Smart Motion Detection, Perimeter Protection,
Perimeter Protection: Intrusion, Tripwire (support the classification of Human and Vehicle), Work with IPC support these functions and AI search
Perimeter Detection  16CH
Face Detection  16CH
Object Detection  16CH
Smart Motion Detection  16CH
Recording Mode  Manual, Schedule(Normal, Motion Detection, Alarm, Intelligent)
AI Search  Search by target classification (Human, Vehicle, Non Motor)
Playback
1. Play, Pause, Stop, Fast Forward, Fast Backward, Rewind, Play by Frame
2. Full Screen, Backup (cut/file), Partially Enlarge, Audio on/off
Quick Access IPC Support One Click adding IPC
Alarm Linkage Recording, Snap Shot, Buzzer, Log, Preset, Alarm Push, E-mail
Bidirectional Talk  Two-way Voice Intercom
Motion Detection  Zones: 396(22*18), Multi-level Sensitivity: level 1~6
Snap Shot  Support JPEG format (Support upload snapshot and video backup to third-party cloud service such as Dropbox, Google Drive)
Smart Phone  iOS, Android
Backup  USB Device
P2P / Cloud Storage  Support / Support Google Drive
CMS / Mobile App IE / Web / PC Client Software / App
Interoperability  ONVIF, SDK
WEB IE 8/10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
Network Protocol  DNS, DDNS, DHCP, FTP, HTTP, IPv4, IP Filter, NTP, ONVIF, P2P, PPPOE, RTP/RTSP, SMTP, SNMP,TCP/IP, UDP, UPnP, Auto Register
3G Dongle  Support
DDNS Built in Free DDNS
Remote Operation Monitoring, PTZ Control, Playback, System Setting, File Download, Log Information
SATA HDD Interface  8 x 14TB HDD
E-SATA 1
Network Port  2*RJ45; 10M / 100 / 1000M, Self-Adaptive Ethernet Interface
VGA Port 1
HDMI Port 2
USB Port  2 x USB 2.0 (Front Panel), 1 x USB 3.0 (Rear Panel)
RCA Input / Output  1CH In / 1CH Out
Alarm Input / Output  16CH In / 4CH Out
RS-232 1
RS-485 1
Dimension 2U / 441*448*88mm
Weight  7kg (Not including HDD)
Power Supply  AC110-240V±10%, 47Hz-63Hz
Power Consumption  < 20W (without HDD, without POE)
Operation Temp. -10°C~55℃
Humidity 10~95%
Certification  CE / FCC / RoHS
ISO  ISO9001
