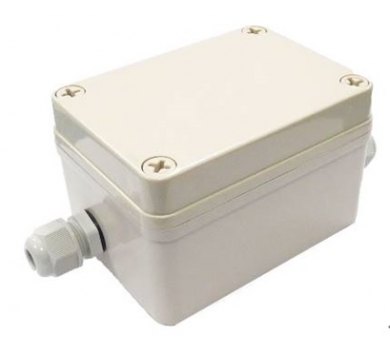

Outdoor PoE Surge Protector
- Performs a different function than grounding requirements
- Protects equipment form high voltage surges from nearby lightning strikes
- RJ45 Jack to RJ45 Jack
Description
| SP006PHO | |
| Input/Output Interface | RJ45 x 2 |
| Pass Through Data Rates | 10 / 100 / 1000 Mbps |
| Response time | < 0.7 ns |
| Maximum discharge current / voltage: | 10KA(8/20 us), 20KV(8/20 us) |
| ESD Protection | 15KV (Air) / 8KV (Contact) |
| Operating Voltage | 60V |
| Waterproof | IP66 |
| Temp. | Operation: -40℃ ~ 70℃, Storage: -40℃ ~ 90℃ |
| Humidity | up to 95% |
| Material | ABS |
| Dimension | 80x158x45 (mm) |
