4K HDTVI / AHD / HDCVI to HDMI Converter with HD loop out
Back to list

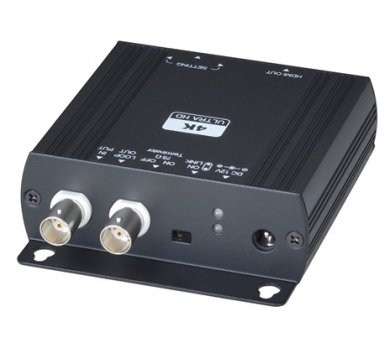

4K HDTVI / AHD / HDCVI to HDMI Converter with HD loop out

  • Converts HD-TVI / HD-CVI / AHD signal to HDMI signal
  • BNC input supports: 1080p/4MP/5MP up to 4K (8 MP)
  • HDMI output up to 4K @30Hz
Description
AD001UHD4
Video Input   Resolution  HD-TVI AHD  HDCVI
  4K (8 MP) 3840 x 2160p 12.5/15 FPS 15 FPS X
  5 MP 2592 x 1944p 12.5/20 FPS 20 FPS X
  4 MP 2560 x 1440p 25/30 FPS 15/25/30 FPS 25/30 FPS
  2 MP 1920 x 1080p 25/30 FPS 25/30 FPS 25/30 FPS
HDMI Video Output  4K@30Hz, 1080p@60Hz
Input Connector  BNC
Output Connector  HDMI Type-A, BNC
75Ω Terminator  75Ω Terminator x 1
Power Supply  DC 12V  500mA
Power Consumption  300mA
Temperature   Operation: 0 ~ 70°C , Storage: -40 ~ 125°C, Humidity: up to 90%
Dimension / Weight 88 x 110.5 x 30 mm  / 236g
Certification  CE / FCC / RoHS
