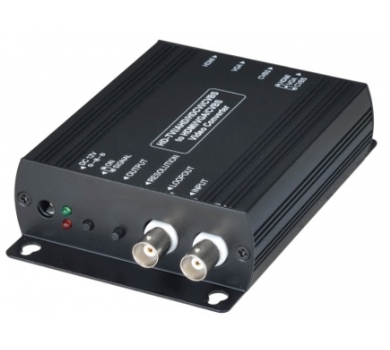

HDTVI / AHD / HDCVI / CVBS to HDMI / VGA / CVBS Selection Converter with loop out
- Converts HD-TVI/AHD/HDCVI/NTSC/PAL/960H signal to HDMI or VGA or Composite Video
- Input support: HD-TVI/AHD/HDCVI support: 720p@25/30/50/60, 1080p@25/30Hz
- Output support: selection HDMI or VGA or Composite Video
Description
| AD001HDE | |
| Video Input | AHD / HD-TVI / CVI: 720p@25/30/50/60hz, 1080p@25/30Hz, NTSC, PAL, 960H |
| Video Output | HDMI: 720p/60, 1080p/60 VGA: 800x600/60, 1024x768/60, 1280x720/60, 1280x1024/60, 1360x768/60, 1440x900/60, 1600x1200/60, 1680x1050/60, 1920x1080/60 CVBS: NTSC, PAL |
| Input Connector | BNC (75Ω 1Vpp) x 1 |
| Loop Connector | BNC (75Ω 1Vpp) x 1 |
| Output Interface | HDMI Type-A x 1, D-SUB 15 x 1, BNC (75Ω 1Vpp) x 1 |
| Switch | Tact Switch x 2 |
| Power Supply | DC 12V 500mA |
| Power Consumption | 250mA (Max) |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% |
| Dimension / Weight | 88 x 130 x 30 mm / 270g |
| Certification | CE / FCC / RoHS |
