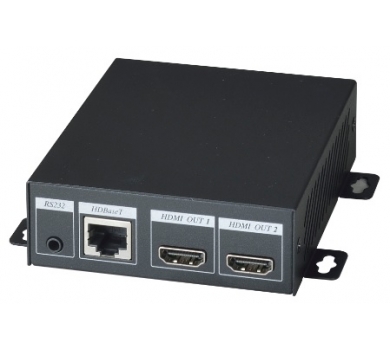

4K 60Hz 4: 4: 4 HDMI & IR / RS232 CAT5e Extender
- Extend HDMI 4K UHD, RS232 and IR Signal over one CAT5e/6 cable
- HDMI 2.0, HDCP 2.2 / 1.4 & DVI Compliant
- Support 1080p@60Hz@48bits at 100M, 4K@60hz at 70M
Description
| HE02EXT | HE02EXR | |
| HDMI Input Connector | HDMI Type A x 1 | X |
| HDMI Output Connector | HDMI Type A x 1 | HDMI Type A x 2 |
| HDMI Video Support | 1080p @ 60Hz @ 48bits, 3D, 4K/60Hz/4:4:4 | |
| HDMI Audio Support | Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA | |
| HDBaseT Connector | RJ45 x 1 | |
| HDBaseT Distance | 100M | |
| RS-232 Connector | DB9(F)/3.5mm STEREO PHONE JACK | DB9(M)/3.5mm STEREO PHONE JACK |
| RS-232 Baud Rate | 115200 bps / full duplex | |
| IR Input / Output | 3.5mm Phone Jack x 2 | |
| IR Carrier Frequency/Angle/Distance | 30~60KHz / T : ± 10° / R : ± 55° / 5M / Bi-directional | |
| Power Consumption | 1Amp, Low power: 263mA | 1.6Amp, Low Power: 324mA |
| Power Supply | DC 5V 2A | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension / Weight | 109.6 x 109.5 x 30 mm | |
| Weight | 270 g | 285 g |
| Certification | CE / FCC / RoHS | |
