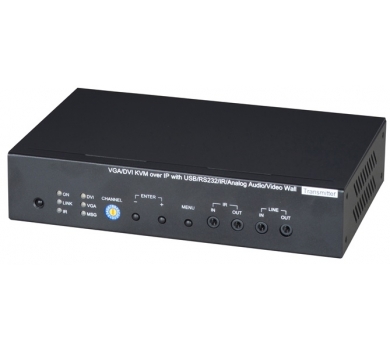

VGA / DVI KVM USB / RS232 / IR / Analog Audio over IP with Video Wall
- Extend and distribute 4K HDMI signal with USB, bi-directional RS232/IR, and analog audio signals over LAN
- Supports resolutions up to 1080p and 1920 x 1200 60Hz
- HDCP 1.4 compoiant
Description
| VDKM02BT | VDKM02BR | ||||
| Copper Distance | 150M (Use Network Switch Max 100M) | ||||
| HDMI Video Support | Up to 1080p, 1920x1200@60Hz | ||||
| HDCP Compliant | HDCP 1.4 | ||||
| Audio Support | Stereo Audio | ||||
| Input | DVI-I (Digital only) / VGA | X | |||
| Loop Output | DVI-I (Digital only) / VGA | X | |||
| Output | X | DVI-I (Digital only) / VGA | |||
| Analog Audio Input | Line In, 3.5mm Stereo Phone Jack | Mic In, 3.5mm Mono Phone Jack | |||
| Analog Audio Output | Line Out, 3.5mm Stereo Phone Jack | ||||
| USB | USB 2.0 Type B x 1 (Rear) | USB 1.1 Type A x 2 (Front) USB 2.0 Type A x 2 (Rear) | |||
| IR Receiver (Int) | 20~60KHz / ± 45 ° / 5M | ||||
| IR Emitter (Ext) | 3.5mm Stereo Phone Jack 20~60KHz / ± 45 ° / 5M | ||||
| RS-232 | DB9 Female | DB9 Male | |||
| (Not support hardware handshake) | |||||
| Ethernet | Gigabit RJ45 | ||||
| Power Supply | DC 5V / 2000mA | ||||
| Certification | CE / FCC / RoHS | ||||
