VGA with Audio to HDMI Converter
Back to list

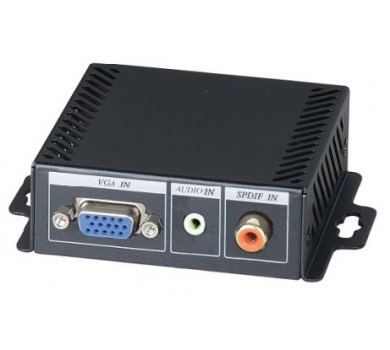

VGA with Audio to HDMI Converter

  • Convert VGA & Stereo/Digital (SPDIF) audio to HDMI display
  • Support HDMI & DVI output mode
  • Built in Auto selection on the stereo and digital audio
Description
  VH01E
Input Signal  VGA x 1920 x 1200@60Hz Max, stereo audio / digital audio
Vido Input Connector  DB15 x 1 (0.7 Vp-p 75Ω)
Analog Audio Input  3.5mm Stereo Phone jack, (3Vp-p Max, 10KΩ)
Digital Audio Input  SPDIF RCA, 75Ω x 1
Video Output Signal  HDMI A type connector x 1
Power Consumption 500mA
Power Supply  DC 5V / 1A
Temperature   Operation: 0 ~ 70°C , Storage: -40 ~ 85°C, Humidity: up to 95%
Dimension   mm 92 x 75.5 x 25
Weight          g 170
Certification  CE / FCC / RoHS
