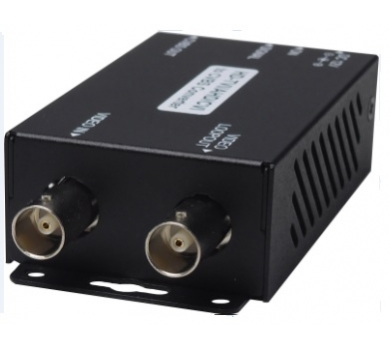

AHD / HD-TVI / CVI to CVBS Converter Built in loop out
- Converts AHD / HD-TVI / CVI signal to composite video
- Built in local loop output
- Compact size
Description
| AD001HD1 | |
| Video Support Resolution | AHD / HD-TVI / CTV: 720p@25/30/50/60Hz, 1080p@25/30Hz |
| Video Input Connector | BNC x 2 |
| Video Output Connector | BNC x 1 |
| LED Indication | LED x 2 (Green, Blue) |
| Power Supply | DC 12V |
| Power Consumption | 350mA (Max) 4-5 Watts |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% |
| Dimension / Weight | 49.2 x 111.4 x 25 mm / 160g |
| Certification | CE / FCC / RoHS |
