HDTVI / AHD / HDCVI / CVBS to HDMI / VGA / Composite Video Converter
Back to list

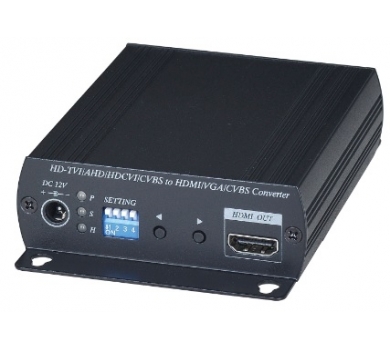

HDTVI / AHD / HDCVI / CVBS to HDMI / VGA / Composite Video Converter

  • Input support: HD-TVI / AHD / HDCVI
  • Output support: HDMI, VGA, Composite Video or loop out
  • 3 outputs could be display simultaneously
Description
AD001HD4
Video Input  HD-TVI / AHD / HDCTV 720p@25/30/50/60Hz, 1080p@25/30Hz, NTSC, PAL, 960H
 Video Output  HDMI & VGA (480p, 576p, 720p/50/60, 1080i/50/60, 1080p/50/60), CVBS (NTSC, PAL)
Input Connector  BNC (75Ω 1Vpp)
Output Connector  HDMI Type-A, D-SUB 15, BNC (75Ω 1Vpp)
Switch   DIP Switch x 1, Tact Switch x 2
Power Supply  12V 500mA
Power Consumption  350mA (Max) 4-5 Watts
Temperature   Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95%
Dimension / Weight 88 x 130 x 30 mm  / 275g
Certification  CE / FCC / RoHS
