HDMI ARC (Audio Return Channel) / Digital Audio Converter
Back to list

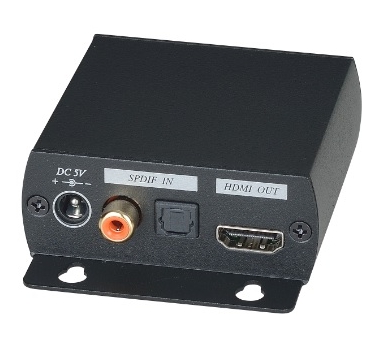

HDMI ARC (Audio Return Channel) / Digital Audio Converter

  • As an ARC decoder/encoder
  • Design to use for for AV receiver or TV without ARC function
  • Encode digital audio to HDMI ARC output
Description
ARC01
Video Input / Output    HDMI Type A
Digital Audio input / output RCA 75Ω, TOSLINK
Temp. Operation: 0℃ ~ 55℃, Storage: -20℃ ~ 85℃
Humidity  up to 95%
Poser Supply DC5V 1Amp
Power Consumption  90mA (Typical) / 150mA (Max)
Dimension  67x91x27 mm
Weight 140 g
