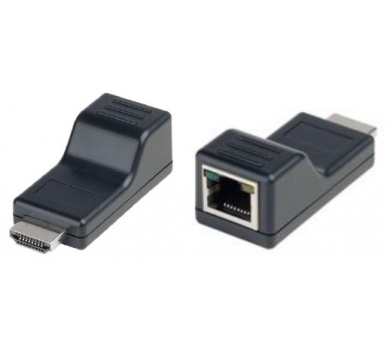

Passive HEMI CAT5e Extender
- Special design to extend HD DVR / NVR HDMI signal only
- HE01SER as active receiver for high performance
- Support high resolution 1080p at 40M
Description
| HE01SET | HE01SER | |
| Video Bandwidth | 2.25 Gbps (HDMI 1.3) | |
| Resolution | Up to 1920x1200@60hz | |
| Input TMDS Video Signal | 1.2 Vp-p | |
| Input DDC Signal | 5 Vp-p (TTL) | |
| Link Cable Distance | 40M@1920x1200, 70M@1280x720 | |
| HDMI Connector | HDMI Type A | |
| Link Connector | RJ45 x 1 | |
| Power Connector | Micro USB x 1 | X |
| Power Consumption | 320mA | |
| Power Supply | 5V 1Amp (Optional Order) | |
| Temperature | Operation: -10 ~ 65°C , Storage: -20 ~ 85°C, Humidity: up to 85% | |
| Dimension / Weight | 57.5 x 24 x 20.2 mm / 20g | |
| Certification | CE / FCC / RoHS | |
