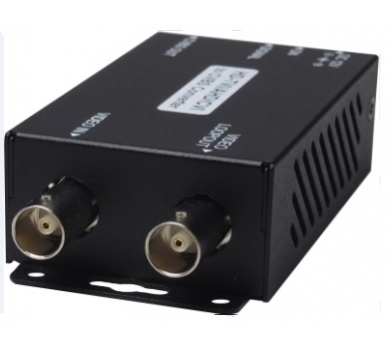

AHD / HD-TVI / CVI to CVBS Converter Built in loop out
- Converts AHD / HD-TVI / CVI signal to composite video
- Built in local loop output
- Compact size
Description
| AD001HD1 | |
| Video Support Resolution | AHD / HD-TVI / CVI: 720p@25/30, 720p@50/60hz, 1080p@25/30Hz |
| Video Output | CVBS (NTSC, PAL) x 1, HD Loop out x 1 |
| Video Input | BNC x 1 |
| LED Indication | LED x 2 (Green, Blue) |
| Power Supply | DC 12V 500mA |
| Power Consumption | 350mA (Max) |
| Temperature | Operation: -10 ~ 70°C , Storage: -20 ~ 85°C, Humidity: up to 95% |
| Dimension / Weight | 49.2 x 111.4 x 25 mm / 140g |
| Certification | CE / FCC / RoHS |
