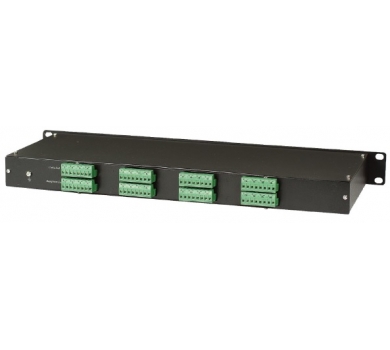

16ch UTP HDCVI / HD-TVI / AHD / CVBS Surge Protection For DVR in 1U Rack Mounting Panel
- Design wot work with twisted pair cabling transmission
- 16 terminal to 16 terminal
- Porvide protection for analog HDCVI, HD-TVI, AHD camera, DVR devices
Description
| SP016HDT | ||
| Input & Output interface | Input: Terminal x 16, Output: Terminal x 16 | |
| Surge Protection Attack Time | < 1nS | |
| Starting voltage surge | 6V | |
| Maximum Clamping Voltage | 25V | |
| Reference Standard | IEC 61000-4-5 | |
| Signal insertion loss | 0.8db @ 42 MHz | |
| Maximum discharge current | 15KA (Max) | |
| Temperature | Operation: -40 ~ 85°C , Storage: -40 ~ 90°C, Humidity: up to 90% | |
| Dimension mm | 483 x 185.5 x 44 (1U) | |
| Weight g | 2200 | |
| Certification | CE / FCC / RoHS | |
