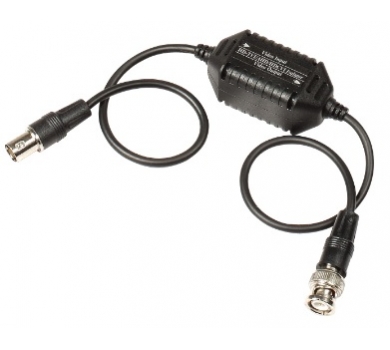

Passive HD-TVI / AHD / HDCVI Ground Loop Isolator
- BNC male to BNC female with mini cable 15cm on both sides
- Passive, no power required
Description
| GL001HDP | |
| Frequency Resoponse | 25Hz ~ 50MHz (0~3dB) |
| Coaxial Input/Output Resistance | 75 Ohm |
| Ground Isolation | >90dB @ >50Hz |
| Isolation Voltage | 500VAC / 600VDC |
| Insulation Resistance | >1M Ohm |
| CMRR | > 60dB |
| Dimension / Weight | 73 x 28 x 26.5 mm with 20cm x 2 Cable / 85g |
| Certification | CE / FCC / RoHS |
