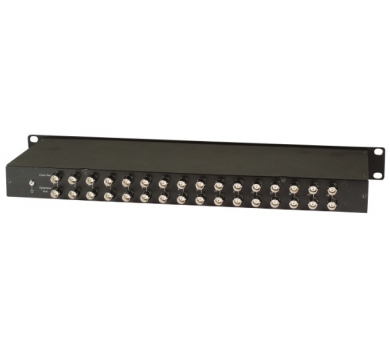

16CH HD-TVI/AHD/HDCVI Surge Protection for DVR in 1U Rack Mounting Panel
Back to list

16CH HD-TVI/AHD/HDCVI Surge Protection for DVR in 1U Rack Mounting Panel

  • 16 x BNC male to 16 x BNC female
  • Provide protection for analog HD-CVI, HD-TVI, AHD camera, DVR devices
Description
SP016HD
Input and output interface  BNC (Male) x 16, BNC (Female) x 16
Surge Protection Attack Time  < 1nS
Starting voltage surge  6V
Maximum Clamping Voltage  25V
Reference Standard  IEC 61000-4-5
Signal insertion loss 0.8db @ 42 MHz
Maximum discharge current  15 KA ( MAX )
Environmental Specifications  operation: -40 ~ 90°C , Storage: -40 ~ 90°C, Humidity: up to 90%
Dimension / Weight 483 x 185.5 x 44 mm (1U)  / 2200g
Certification  CE / FCC / RoHS
