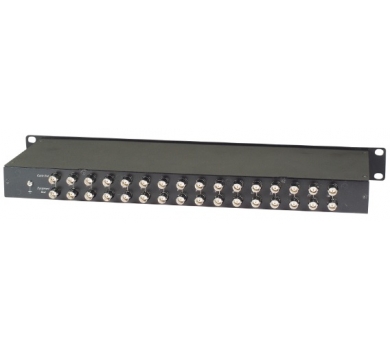

16CH HD-TVI / AHD / HDCVI Surge Protection for DVR in 1U Rack Mounting Panel
- 16 x BNC male to 16 x BNC female
- Provide protection for analog HD-CVI, HD-TVI, AHD camera, DVR devices
Description
| SP016HD | |
| Input and output interface | BNC (Male) x 16, BNC (Female) x 16 |
| Surge Protection Attack Time | < 1nS |
| Starting voltage surge | 6V |
| Maximum Clamping Voltage | 25V |
| Reference Standard | IEC 61000-4-5 |
| Signal insertion loss | 0.8db @ 42 MHz |
| Maximum discharge current | 15 KA ( MAX ) |
| Environmental Specifications | operation: -40 ~ 90°C , Storage: -40 ~ 90°C, Humidity: up to 90% |
| Dimension / Weight | 483 x 185.5 x 44 mm (1U) / 2200g |
| Certification | CE / FCC / RoHS |
