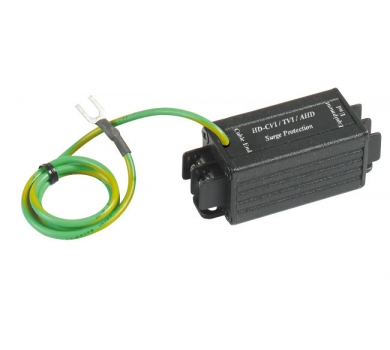

HD-CVI / TVI / AHD Surge Protector
- Terminal to terminal connector
- Provide protection for analog / HD-CVI / HD-TVI / AHD camera and DVR devices
Description
| SP009T | |
| Input and output interface | Terminal connector |
| Surge Protection Attack Time | < 1nS |
| Starting voltage surge | 7V |
| Minimum Breakdown Voltage | 6V |
| Maximum Clamping Voltage | 25V |
| Reference Standard | IEC 61000-4-5 |
| Signal insertion loss | 0.8db @ 42MHz |
| Maximum discharge current | 15 KA ( MAX ) |
| Environmental Specifications | operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% |
| Dimension / Weight | 79.3 x 25.4 x 25.4 mm / 75g |
| Certification | CE / FCC / RoHS |
