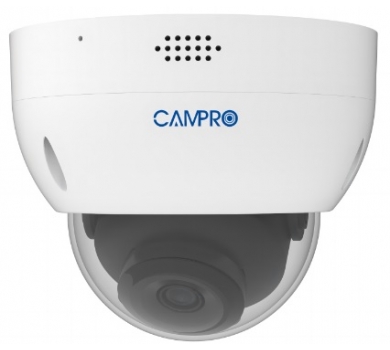

CB-FC504P | |||||
Sensor | 1/2.7" 5.0MP CMOS Sensor | ||||
RAM & Flash | 256Mb RAM / 128Mb ROM | ||||
Minimum Illumination | 0.0002 Lux @F1.2(AGC ON), 0Lux (IR ON) | ||||
Shutter Speed | 1/3 s to 1/100,000 s | ||||
Day / Night | Auto / Dual IR-Cut filter / D/N Sensitive Switch / Mixed Mode Swith | ||||
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||||
Lens | 2.8/3.6/6.0mm Fixed Focal Lens | ||||
Max. Aperture Ratio | F No. 1.0 | ||||
Min. Object Distance | 2M | ||||
Lens Mount | M 12 | ||||
Max. Aperture | F1.0 | ||||
Iris Type | Auto Iris | ||||
Lens | 2.8mm | 3.6mm | 6.0mm | ||
111° | 90° | 54° | |||
59° | 48° | 29° | |||
134° | 108° | 63° | |||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8mm | 44.1 | 17.7 | 8.8 | 4.4 | |
3.6mm | 58.9 | 23.6 | 11.8 | 2.9 | |
6.0mm | 82.8 | 33.1 | 16.6 | 8.3 | |
Supplement Light Type | IR Led*2 up to 40M / 850nm, Warm Light*2 up to 30M | ||||
Supplement Light Range | 40M (D&N) / 30M (Full Color) | ||||
Illuminator Control | Auto / Manual | ||||
Smart IR | Supported | ||||
Max Resolution | 2880*1620@25/30fps | ||||
Main Stream | 30fps (5MP: 2880*1620, 4MP: 2592*1520, 3MP: 2304*1296, 2MP: 1920*1080, 960P:1280*960, 720P: 1280*720) | ||||
Sub Stream | 30fps (D1, 640*480, 320*240) | ||||
Third Stream | 30fps (1280*720,640*480, 320*240) | ||||
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG Third stream: H.265+/H.265/H.264+/H.264 | ||||
Bit Rate | H.265: 3 Kbps ~ 20480 Kbps, H.264: 3 Kbps ~ 20480 Kbps | ||||
U-code | Supported | ||||
Bit Rate Control | CBR / VBR | ||||
Scalable Video Coding (SVC) | H.265 and H.264 Encoding (H.265+ (Ultra H.265)/H.265/H.264+/H.264/MJPEG) | ||||
Audio Encoding | G.711A / G.711Mu / G.726 / G.726ASF | ||||
Audio Bite Rate | Minimum 64 Kbps or Higher | ||||
Reduce Echo | Supported | ||||
Noise Filtering | Supported | ||||
Built-in MIC | Supported | ||||
Built-in Speaker | Supported | ||||
Two-way Audio | Supported (Built in Microphone & Speaker) | ||||
Other Audio Function | Support Auto Gain, Audio Input/Output Volume | ||||
Network Protocol | DHCP, DNS, DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF, P2P, PPPOE, QoS, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP, 802.1X | ||||
Protocol | ONVIF / CGI / P2P | ||||
Simultaneous Live View | Up to 16CH | ||||
API | Open Network Video Interface Profile S, G, T, SDK | ||||
User/Host | 20 User (Total bandwidth: 80M), 2 user levels: administrator and user | ||||
Security | Password protection, complicated password, HTTPS Encryption, 802. 1X Authentication (EAP-MD5), Watermark, Basic and Digest, Authentication for HTTP/HTTPS, WSSE and Digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security Audit log, TLS 1.2, TLS 1.3, Host Authentication (MAC address) | ||||
Video Management Software | IE / Web / PC Client Software / App | ||||
Mobile Client | iOS, Android | ||||
Web Browser | Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ | ||||
Smooth Streaming | Yes | ||||
OSD | Minimum 4 OSDs | ||||
Privacy Mask | Up to 4 Areas (programmable polygon privacy masks) | ||||
ROI | Support 8 Areas | ||||
Corridor Mode | Supported | ||||
Color Pattern | Standard / Gorgeous | ||||
WDR | True WDR, ≥140dB | ||||
DNR | 3D DNR (Auto / Manual) | ||||
S/N Ratio | ≥ 56 dB | ||||
BLC / White Balance | Auto / Lock White Balance / Fluorescent Lamp / Filament Lamp / Fluorescent Lamp / HM | ||||
Image Control | Brightness, Contrast, Sharpness, Saturation | ||||
Gain Control | Auto | ||||
Flip | Normal / Vertical / Horizontal / 0° / 90° / 180° / 270° | ||||
Mirror | Supported | ||||
Highlight Compensation | Supported | ||||
FLC | FLC Supported | ||||
Backlight COmpensation | BLC Supported | ||||
Suppression | HLC Supported | ||||
Penetrating Fog | Supported | ||||
Vernier Focusing | Supported | ||||
All Electric Rectifier | Supported | ||||
Audio | 1CH Input / 1CH Output | ||||
Alarm | 1CH Input / 1CH Output | ||||
LAN Ports | RJ45*1, 10M/100M Base-T | ||||
Storage | Support Max. 256G Micro SD / SDHC / SDXC(FAT32), FTP | ||||
Motion Detection | Multiple Detection Zones, Variable Sensitivity Levels | ||||
Snapshot | Support JPEG format | ||||
Security Features | Pass word, Watermark | ||||
OSD | Channel Name, Data & Time, Image Overlay | ||||
Storage | Support FTP Storage | ||||
Alarm | Arming/Disarming, Sound Alarm, Light Alarm, Mask Alarm, Support Network Anomaly etc. | ||||
Linkage | FTP / Memory Card E-mail, Notify Surveillance Center, Trigger Recording, Trigger Capture | ||||
Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error | ||||
Basic Detection | Face Detection, Cross Line, Intrusion (Based on Human and Vehicle Detection), Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Watermark, IP address Filtering, Access Policy, ARP Protection, RTP/RTSP Authentication, User Authentication, HTTP/HTTP Authentication | ||||
Face Detection | Supported | ||||
Perimeter Protection | Intrusion, Tripwire (support the classification of Human and Vehicle & Non Motor) | ||||
Smart Motion Detection | Supported | ||||
AI Search | Work together with NVR | ||||
Case | Metal, Indoor & Outdoor | ||||
Protection Level | IP67 | ||||
Temp. / Humidity | -30°C ~ 60℃ / Less than 95% RH | ||||
Storage Conditions | -40°C ~ 60℃ | ||||
Power Consumption | Basic: 2.8 W; Max. 5.5W | ||||
Power Supply | DC12V 2A / POE (IEEE802.3af) | ||||
Lightning Protection | Power, Network, POE all Lightning Protection, meet GB/T17626.5 and IEC61000-4-5 | ||||
Dimenstion | 122 (L)*102 (H) mm / 0.5KG | ||||
Certification | CE / FCC / RoHS | ||||
ISO | ISO9001 |
