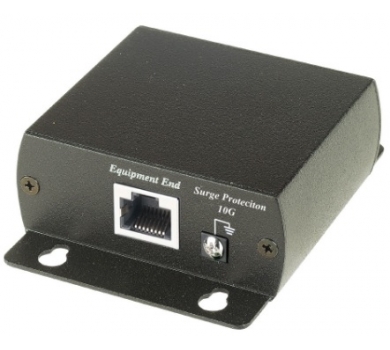

Network 1G/10G HDBaseT Surge Protector
- Protects equipment from high voltage surges from nearby lightning strikes
- Support the bandwidth data rate up to 10Gb/s (Max)
Description
| SP006H | |
| Input Interface | RJ45 |
| Output Interface | RJ45 |
| Response time | < 1 ns |
| ESD protection | 15KV(Air), 8KV(Contact) IEC 61000-4-2 compliant |
| Switch | 2KA (8/20µs), 6KV (8/20µs) IEC 61000-4-5 compliant |
| Bandwidth (Data rate) | Up to 10Gb/s (Max) |
| Insertion Loss | Less than 0.2 dB |
| Return Loss (100 ohms) | 16dB |
| Temp. | Operation: -10℃ ~ 75℃, Storage: -40℃ ~ 90℃ |
| Humidity | up to 95% |
| Dimension | 67x87x27 mm |
| Weight | 126 g |
